Full HD Cloud Dashcams

Reliable and Connected

The BlackVue DR750X Plus Series set the standard for Cloud connectivity and reliability.

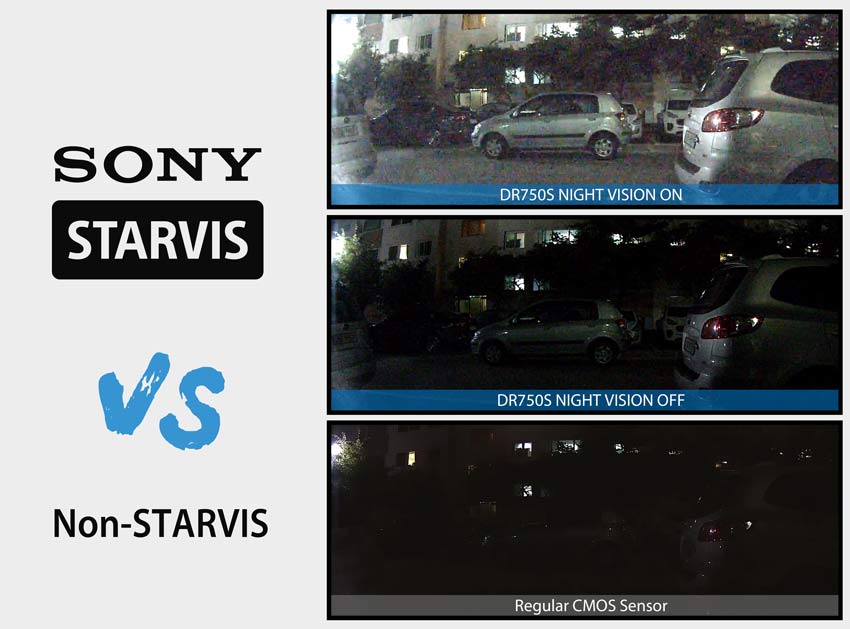

Equipped with Full HD Sony STARVIS™ image sensors, the DR750X Plus dashcams record clear videos under any light.
Also included are GPS logger, Wi-Fi, Cloud connectivity, impact and motion detection. All this in a stealthy design that never gets in the way of your driving.
No need for a screen: with the free BlackVue app, connect to your dashcam whenever you need.

DR750X Plus Series - Full HD Cloud Dashcams

Full HD Cloud Dashcams

DASHCAMS WITHOUT COMPROMISE

Front cam: 2.1 megapixels STARVIS™ sensor / Full HD (1920×1080 @60FPS) / View angle: 139 degrees.
Rear cam (DR750X-2CH Plus): 2.1 megapixels STARVIS™ sensor / Full HD (1920×1080 @30FPS) / View angle: 139 degrees.
Interior cam (DR750X-2CH IR Plus): 2.1 megapixels with infrared LEDs / Full HD (1920×1080 @30FPS) / View angle: 139 degrees.
Exterior waterproof cam (DR750X-2CH TRUCK Plus): 2.1 megapixels with 6 infrared LEDs / Full HD (1920×1080 @30FPS) / View angle: 116 degrees.
DMC200 (DR750X-2CH DMS Plus): 2.1 megapixels STARVIS™ sensor / Full HD (1920×1080 @30FPS) / View angle: 115 degrees.

With the free BlackVue Cloud add-on service, check on your car anytime, anywhere.

DR750X-1CH Plus / DR750X-2CH Plus

Connectivity Module User Guide

Icon

CM100LTE User Guide

1 file(s) 1.4 MB

    Specifications
    Model Name DR750X-2CH Plus
    Channel2CH
    Highlights Full HD (Front + Rear), Cloud, Wi-Fi, GPS, Dual Sony Sensors, External LTE Module
    Product Dimensions - Front: W 118.5 mm (4.67″) x H 36 mm (1.42″) /103 g (3.70 oz)
    - Rear: W 67.4 mm (2.65″) x H 25 mm (0.98″) / 25 g (0.88 oz)
    Rear Camera Connection Coaxial cable
    Memory Support microSD card up to 256GB
    Recording Modes – Normal,
    – Event (Impact Detection / Speed Limit / Manual),
    – Parking Mode (Impact+Region-based Motion Detection, Timelapse+Events)
    Parking Mode YES (with 3-wire hardwiring cable – included)
    Parking Mode Event Voice Notifications YES
    Imaging Sensor Front: Sony STARVIS™ CMOS Sensor (Approx. 2.1MP)
    Rear: Sony STARVIS™ CMOS Sensor (Approx. 2.1MP)
    Viewing Angle Front: Diagonal 139°, Horizontal 116°, Vertical 61°
    Rear: Diagonal 139°, Horizontal 116°, Vertical 61°
    Resolution Frame Rate Front / Rear
    Full HD @60fps – Full HD @30fps
    * Frame rate may vary during Wi-Fi streaming.
    Video Codec H.264 (AVC)
    Image Quality and Bitrate Front/Rear Highest (Extreme): 25+10 Mbps
    Highest: 12+10 Mbps
    High: 10+8 Mbps
    Normal: 8+6 Mbps
    Format Free YES (Adaptive)
    Event File Overwrite Protection YES (up to 50)
    SD Card Failure Alert YES
    Scheduled Reboot YES
    Video File Extension MP4
    Wi-Fi Built-in (802.11 b.g.n)
    Cloud Compatible YES
    GPS Built-in (Dual Band : GPS, GLONASS)
    Microphone Built-in
    Speaker Built-in
    Impact Sensor 3-Axis Acceleration Sensor
    LED Indicators Front: Recording LED, GPS LED, LTE/Wi-Fi, Front Security LED, Proximity Sensing indicator LED
    Rear:Rear Security LED

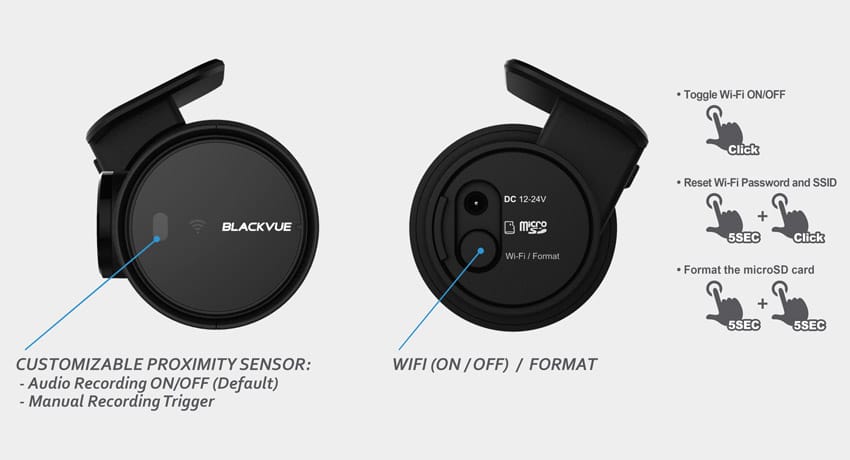

    Button button: Wi-Fi ON/OFF (Press)
    Proximity sensor: Mic ON/OFF / Trigger Manual Recording / OFF (configurable)
    Operation Temperature -20 °C − 80 °C (-4 °F − 176 °F)
    Storage Temperature -20 °C − 80 °C (-4 °F − 176 °F )
    High Temp Cut Off Approx. 80 °C (176 °F)
    Backup Battery Built-in supercapacitor
    Input Power DC 12V-24V (DC Plug (Ø3.5 x Ø1.1)) to Wires (Black: GND / Yellow: B+ / Red: ACC)
    Power Consumption Hour Normal Mode (WiFi On / GPS On / 2CH) : Avg. 390mA / 12V
    Normal Mode (WiFi Off / GPS On / 2CH) : Avg. 340mA / 12V
    Parking Mode (WiFi On / GPS Off / 2CH) : Avg. 350mA / 12V
    Parking Mode (WiFi Off / GPS Off / 2CH) : Avg. 300mA / 12V
    * Actual power consumption may vary depending on use conditions and environment.
    CertificationsFront: FCC, ISED, CE, UKCA, RoHS, Telec, WEEE
    Rear: FCC, ISED, CE, UKCA, RoHS, WEEE
    software BlackVue Viewer
    * Windows 7 or higher and Mac OS X Sierra (10.12) or higher
    Application BlackVue Application (Android 5.0 or higher, iOS 11.0 or higher)
    Others Adaptive Format-Free File Management System
    LTEExternal (optional)
    Specifications
    Model Name DR750X-1CH Plus
    Channel1CH (upgradable to 2CH)
    Highlights Full HD, Cloud, Wi-Fi, GPS, Sony Sensor, External LTE Module
    Product Dimensions W 118.5 mm (4.67″) x H 36 mm (1.42″) / 103 g (3.7 oz)
    Rear Camera Connection Coaxial cable
    Memory Support microSD card up to 256GB
    Recording Modes – Normal,
    – Event (Impact Detection / Speed Limit / Manual),
    – Parking Mode (Impact+Region-based Motion Detection, Timelapse+Events)
    Parking Mode YES (with 3-wire hardwiring cable – included)
    Parking Mode Event Voice Notifications YES
    Imaging Sensor Sony STARVIS™ CMOS Sensor (Approx. 2.1MP)
    Viewing Angle Diagonal 139°, Horizontal 116°, Vertical 61°
    Resolution Frame Rate Full HD @60fps * Frame rate may vary during Wi-Fi streaming
    Video Codec H.264 (AVC)
    Image Quality and Bitrate Front/Rear Highest (Extreme): 25 Mbps
    Highest: 12 Mbps
    High: 10 Mbps
    Normal: 8 Mbps
    Format Free YES (Adaptive)
    Event File Overwrite Protection YES (up to 50)
    SD Card Failure Alert YES
    Scheduled Reboot YES
    Video File Extension MP4
    Wi-Fi Built-in (802.11 b.g.n)
    Cloud Compatible YES
    GPS Built-in (Dual Band : GPS, GLONASS)
    Microphone Built-in
    Speaker Built-in
    Impact Sensor 3-Axis Acceleration Sensor
    LED Indicators Recording LED, GPS LED, LTE/Wi-Fi LED, Front Security LED, Proximity Sensing indicator LED
    Button button: Wi-Fi ON/OFF (Press)
    Proximity sensor: Mic ON/OFF / Trigger Manual Recording / OFF (configurable)
    Operation Temperature -20 °C − 80 °C (-4 °F − 176 °F)
    Storage Temperature -20 °C − 80 °C (-4 °F − 176 °F )
    High Temp Cut Off Approx. 80 °C (176 °F)
    Backup Battery Built-in supercapacitor
    Input Power DC 12V-24V (DC Plug (Ø3.5 x Ø1.1)) to Wires (Black: GND / Yellow: B+ / Red: ACC)
    Power Consumption Hour Normal Mode (WiFi On / GPS On / 1CH) : Avg. 250mA / 12V
    Normal Mode (WiFi Off / GPS On / 1CH) : Avg. 200mA / 12V
    Parking Mode (WiFi On / GPS Off / 1CH) : Avg. 230mA / 12V
    Parking Mode (WiFi Off / GPS Off / 1CH) : Avg. 180mA / 12V
    * Actual power consumption may vary depending on use conditions and environment
    CertificationsFCC, ISED, CE, UKCA, RoHS, Telec, WEEE
    software e BlackVue Viewer
    * Windows 7 or higher and Mac OS X Sierra (10.12) or higher
    Application BlackVue Application (Android 5.0 or higher, iOS 11.0 or higher)
    Others Adaptive Format-Free File Management System
    LTEExternal (optional)
    Specifications
    Model Name DR750X-2CH IR Plus
    Channel2CH
    Highlights Full HD (Front + Interior IR Cam), Cloud, Wi-Fi, GPS, Dual Sony Sensors, External LTE Module (Optional)
    Product Dimensions - Front: W 118.5 mm (4.67″) x H 36 mm (1.42″) /103 g (3.70 oz)
    - Rear: W 67.4 mm (2.65″) x H 25 mm (0.98″) / 25 g (0.91 oz)
    Rear Camera Connection Coaxial cable
    Memory Support microSD card up to 256GB
    Recording Modes – Normal,
    – Event (Impact Detection / Speed Limit / Manual),
    – Parking Mode (Impact+Region-based Motion Detection, Timelapse+Events)
    Parking Mode YES (with 3-wire hardwiring cable – included)
    Parking Mode Event Voice Notifications YES
    Imaging Sensor Front: Sony STARVIS™ CMOS Sensor (Approx. 2.1MP)
    Rear: Sony STARVIS™ CMOS Sensor (Approx. 2.1MP)
    Viewing Angle Front: Diagonal 139°, Horizontal 116°, Vertical 61°
    Rear: Diagonal 139°, Horizontal 116°, Vertical 61°
    Resolution Frame Rate Front / Rear
    Full HD @60fps – Full HD @30fps * Frame rate may vary during Wi-Fi streaming.
    Video Codec H.264 (AVC)
    Image Quality and Bitrate Front/Rear Highest (Extreme): 25+10 Mbps
    Highest: 12+10 Mbps
    High: 10+8 Mbps
    Normal: 8+6 Mbps
    Format Free YES (Adaptive)
    Event File Overwrite Protection YES (up to 50)
    SD Card Failure Alert YES
    Scheduled Reboot YES
    Video File Extension MP4
    Wi-Fi Built-in (802.11 b.g.n)
    Cloud Compatible YES
    GPS Built-in (Dual Band : GPS, GLONASS)
    Microphone Built-in
    Speaker Built-in
    Impact Sensor 3-Axis Acceleration Sensor
    LED Indicators Front: Recording LED, GPS LED, LTE/Wi-Fi, Front Security LED, Proximity Sensing indicator LED
    Rear:Rear Security LED
    Button button: Wi-Fi ON/OFF (Press)
    Proximity sensor: Mic ON/OFF / Trigger Manual Recording / OFF (configurable)
    Operation Temperature -20 °C − 80 °C (-4 °F − 176 °F)
    Storage Temperature -20 °C − 80 °C (-4 °F − 176 °F )
    High Temp Cut Off Approx. 80 °C (176 °F)
    Backup Battery Built-in supercapacitor
    Input Power DC 12V-24V (DC Plug (Ø3.5 x Ø1.1)) to Wires (Black: GND / Yellow: B+ / Red: ACC)
    Power Consumption Hour Normal Mode (WiFi On / GPS On / 2CH) : Avg. 390mA / 12V
    Normal Mode (WiFi Off / GPS On / 2CH) : Avg. 340mA / 12V
    Parking Mode (WiFi On / GPS Off / 2CH) : Avg. 350mA / 12V
    Parking Mode (WiFi Off / GPS Off / 2CH) : Avg. 300mA / 12V
    * Approx. 40mA increase in current when IR LEDs are ON.
    * Actual power consumption may vary depending on use conditions and environment.
    CertificationsFront: FCC, ISED, CE, UKCA, RoHS, Telec, WEEE
    Rear: FCC, ISED, CE, UKCA, RoHS, WEEE
    software BlackVue Viewer
    * Windows 7 or higher and Mac OS X Sierra (10.12) or higher
    Application BlackVue Application (Android 5.0 or higher, iOS 11.0 or higher)
    Others Adaptive Format-Free File Management System
    LTEExternal (optional)
    Specifications
    Model Name DR750X-2CH TRUCK Plus
    Channel2CH
    Highlights Full HD (Front + External Waterproof IR Cam), Cloud, Wi-Fi, GPS, Dual Sony Sensors, External LTE Module (Optional)
    Product Dimensions - Front: W 118.5 mm (4.67″) x H 36 mm (1.42″) / 105g (3.70 oz)
    - Rear: W 70.0 mm (2.76″) x H 44.4 mm (1.75″) / 175 g (6.17 oz)
    Rear Camera Connection Waterproof coaxial cable
    Memory Support microSD card up to 256GB
    Recording Modes – Normal,
    – Event (Impact Detection / Speed Limit / Manual),
    – Parking Mode (Impact+Region-based Motion Detection, Timelapse+Events)
    Parking Mode YES (with 3-wire hardwiring cable – included)
    Parking Mode Event Voice Notifications YES
    Imaging Sensor Front: Sony STARVIS™ CMOS Sensor (Approx. 2.1MP)
    Rear: Sony STARVIS™ CMOS Sensor (Approx. 2.1MP)
    Viewing Angle Front: Diagonal 139°, Horizontal 116°, Vertical 61°
    Rear: Diagonal 145°, Horizontal 118°, Vertical 59°
    Resolution Frame Rate Front / Rear
    Full HD (1920×1080) @60fps – Full HD (1920×1080) @30fps
    * Frame rate may vary during Wi-Fi streaming
    Video Codec H.264 (AVC)
    Image Quality and Bitrate Front/Rear Highest (Extreme): 25+10 Mbps
    Highest: 12+10 Mbps
    High: 10+8 Mbps
    Normal: 8+6 Mbps
    Format Free YES (Adaptive)
    Event File Overwrite Protection YES (up to 50)
    SD Card Failure Alert YES
    Scheduled Reboot YES
    Video File Extension MP4
    Wi-Fi Built-in (802.11 b.g.n)
    Cloud Compatible YES
    GPS Built-in (Dual Band : GPS, GLONASS)
    Microphone Built-in
    Speaker Built-in
    Impact Sensor 3-Axis Acceleration Sensor
    LED Indicators Front: Recording LED, GPS LED, LTE/Wi-Fi LED, Front Security LED, Proximity Sensing indicator LED
    Rear: Rear Security LED
    Button Wi-Fi button: Wi-Fi ON/OFF (Tap)
    Proximity sensor: Mic ON/OFF / Trigger Manual Recording / OFF (configurable)
    Operation Temperature -20℃ – 70℃ (-4°F – 158°F)
    Storage Temperature -20℃ – 70℃ (-4°F – 158°F)
    High Temp Cut Off Approx. 80℃ (176°F)
    Backup Battery Built-in supercapacitor
    Input Power DC 12V-24V (3 pole DC Plug (Ø3.5 x Ø1.1)) to Wires (Black: GND / Yellow: B+ / Red: ACC)
    Power Consumption Hour Normal Mode (WiFi On / GPS On / 2CH) : Avg. 390mA / 12V
    Normal Mode (WiFi Off / GPS On / 2CH) : Avg. 340mA / 12V
    Parking Mode (WiFi On / GPS Off / 2CH) : Avg. 350mA / 12V
    Parking Mode (WiFi Off / GPS Off / 2CH) : Avg. 300mA / 12V
    * Approx. 60mA increase in current when IR LEDs are ON.
    * Actual power consumption may vary depending on use conditions and environment.
    CertificationsFront: FCC, ISED, CE, UKCA, RoHS, Telec, WEEE
    Rear: FCC, ISED, CE, UKCA, RoHS, WEEE
    software BlackVue Viewer
    * Windows 7 or higher and Mac OS X Sierra (10.12) or higher
    Application BlackVue Application (Android 5.0 or higher, iOS 9.0 or higher)
    Others Adaptive Format-Free File Management System
    LTEExternal (Optional)
    Specifications
    Model Name DR750X-2CH DMS Plus
    Channel2CH
    Highlights Dual Full HD, Sony STARVIS image sensors, Cloud, AI-powered Driver Monitoring Camera
    Product Dimensions - Front: Black/Width 118.5 mm x Height 36 mm/103 g
    - DMS: Black/width 115.0 mm x Height 37.88 mm
    Interior Camera Connection Coaxial cable
    Memory Support microSD card up to 256GB
    Recording Modes – Normal,
    – Event (Impact Detection / Speed Limit / Manual),
    – Parking Mode (Impact+Region-based Motion Detection, Timelapse+Events)
    Parking Mode YES (with accessory)
    Parking Mode Event Voice Notifications YES
    Imaging Sensor Front: STARVIS™ CMOS Sensor (Approx. 2.1MP)
    DMS: STARVIS™ CMOS Sensor (Approx. 2.1MP)
    Viewing Angle Front: Diagonal 139°, Horizontal 116°, Vertical 61°
    DMS: Diagonal 115°, Horizontal 95°, Vertical 49°
    Resolution Frame Rate Front / DMS
    Full HD (1920×1080) @60fps – Full HD (1920×1080) @30fps
    * Frame rate may vary during Wi-Fi streaming.
    Video Codec H.264 (AVC)
    Image Quality and Bitrate Front/InteriorHighest (Extreme): 25+10 Mbps
    Highest: 12+10 Mbps
    High: 10+8 Mbps
    Normal: 8+6 Mbps
    Format Free YES (Adaptive)
    Event File Overwrite Protection YES (up to 50)
    SD Card Failure Alert YES
    Scheduled Reboot YES
    Video File Extension MP4
    Wi-Fi Built-in (802.11n (2.4~2.4835 GHz))
    Cloud Compatible YES
    GPS Built-in
    Microphone Built-in
    Speaker Built-in
    Impact Sensor 3-Axis Acceleration Sensor
    LED Indicators Front: REC LED, GPS LED, B/W /L LED, Front Security LED
    DMS: Detection LED (Green/Red/Blue)
    Rear Camera IR Illumination 940 nm (4 Infrared (IR) LEDs)
    Button Wi-Fi button: turn Wi-Fi ON/OFF.
    Format button: format the microSD card (hold until voice prompt, and then hold again).
    Proximity sensor: audio recording ON/OFF or Start Manual Event video. Can be deactivated.
    All actions are confirmed by a voice prompt.
    Touch Key: Press once to turn on/off beep alerts
    Operation Temperature -20°C–75°C
    Storage Temperature -20°C–80°C
    High Temp Cut Off Approx. 75°C
