Truck Dashcams

BlackVue TRUCK Plus Series

Dual and Triple-Channel Dashcams to Secure Trucks and Heavy Vehicles

The BlackVue TRUCK Plus models are ideal to secure most large commercial trucks. The waterproof infrared rear camera connects to the front unit via a 15m (49ft) video cable. This allows to monitor not only the road behind, but also cargo loading and unloading operations.

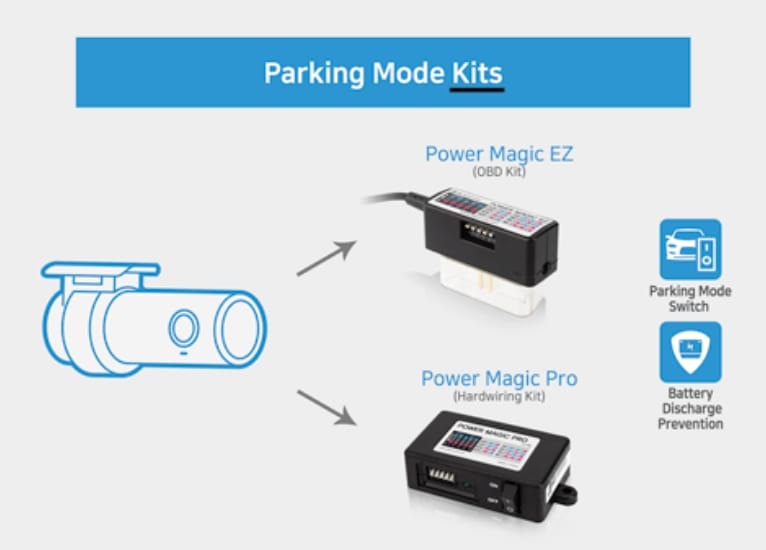

Let your BlackVue protect your assets with its native Parking Mode support (hardwiring cable included).

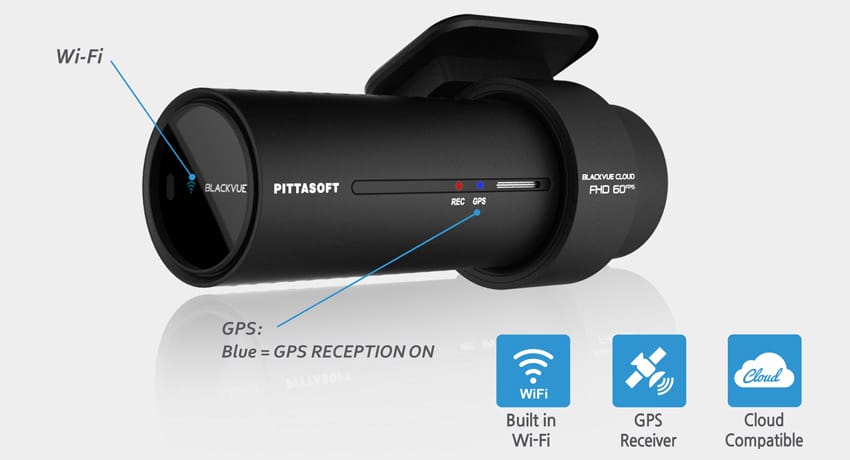

With the free BlackVue Cloud service, check on your car from anywhere, anytime.

Compatible with BlackVue Cloud

Remote Live View – Push Notifications – GPS Tracking – Two-way Voice Communication – Video Backup – Remote Video Playback



Firmware Download

DR750X-3CH TRUCK Plus / DR750X-3CH DMS TRUCK Plus

DR750X-2CH TRUCK Plus

DR750X-2CH TRUCK LTE Plus

Specifications
Model Name DR750X-2CH TRUCK Plus
Channel2CH
Highlights Full HD (Front + External Waterproof IR Cam), Cloud, Wi-Fi, GPS, Dual Sony Sensors, External LTE Module (Optional)
Product Dimensions - Front: W 118.5 mm (4.67″) x H 36 mm (1.42″) / 105g (3.70 oz)
- Rear: W 70.0 mm (2.76″) x H 44.4 mm (1.75″) / 175 g (6.17 oz)
Rear Camera Connection Waterproof coaxial cable
Memory Support microSD card up to 256GB
Recording Modes – Normal,
– Event (Impact Detection / Speed Limit / Manual),
– Parking Mode (Impact+Region-based Motion Detection, Timelapse+Events)
Parking Mode YES (with 3-wire hardwiring cable – included)
Parking Mode Event Voice Notifications YES
Imaging Sensor Front: Sony STARVIS™ CMOS Sensor (Approx. 2.1MP)
Rear: Sony STARVIS™ CMOS Sensor (Approx. 2.1MP)
Viewing Angle Front: Diagonal 139°, Horizontal 116°, Vertical 61°
Rear: Diagonal 145°, Horizontal 118°, Vertical 59°
Resolution Frame Rate Front / Rear
Full HD (1920×1080) @60fps – Full HD (1920×1080) @30fps
* Frame rate may vary during Wi-Fi streaming
Video Codec H.264 (AVC)
Image Quality and Bitrate Front/Rear Highest (Extreme): 25+10 Mbps
Highest: 12+10 Mbps
High: 10+8 Mbps
Normal: 8+6 Mbps
Format Free YES (Adaptive)
Event File Overwrite Protection YES (up to 50)
SD Card Failure Alert YES
Scheduled Reboot YES
Video File Extension MP4
Wi-Fi Built-in (802.11 b.g.n)
Cloud Compatible YES
GPS Built-in (Dual Band : GPS, GLONASS)
Microphone Built-in
Speaker Built-in
Impact Sensor 3-Axis Acceleration Sensor
LED Indicators Front: Recording LED, GPS LED, LTE/Wi-Fi LED, Front Security LED, Proximity Sensing indicator LED
Rear: Rear Security LED
Button Wi-Fi button: Wi-Fi ON/OFF (Tap)
Proximity sensor: Mic ON/OFF / Trigger Manual Recording / OFF (configurable)
Operation Temperature -20℃ – 70℃ (-4°F – 158°F)
Storage Temperature -20℃ – 70℃ (-4°F – 158°F)
High Temp Cut Off Approx. 80℃ (176°F)
Backup Battery Built-in supercapacitor
Input Power DC 12V-24V (3 pole DC Plug (Ø3.5 x Ø1.1)) to Wires (Black: GND / Yellow: B+ / Red: ACC)
Power Consumption Hour Normal Mode (WiFi On / GPS On / 2CH) : Avg. 390mA / 12V
Normal Mode (WiFi Off / GPS On / 2CH) : Avg. 340mA / 12V
Parking Mode (WiFi On / GPS Off / 2CH) : Avg. 350mA / 12V
Parking Mode (WiFi Off / GPS Off / 2CH) : Avg. 300mA / 12V
* Approx. 60mA increase in current when IR LEDs are ON.
* Actual power consumption may vary depending on use conditions and environment.
CertificationsFront: FCC, ISED, CE, UKCA, RoHS, Telec, WEEE
Rear: FCC, ISED, CE, UKCA, RoHS, WEEE
software BlackVue Viewer
* Windows 7 or higher and Mac OS X Sierra (10.12) or higher
Application BlackVue Application (Android 5.0 or higher, iOS 9.0 or higher)
Others Adaptive Format-Free File Management System
LTEExternal (Optional)
Specifications
Model Name DR750X-2CH Truck LTE Plus
Channel2CH
Highlights Built-in 4G LTE, Sony STARVIS image sensors, Infrared (IR) External Rear Camera
Product Dimensions - Front: Black / Width 137.6 mm x Height 43 mm / 159 g
- Rear: Black/Width 70 mm x Height 44.4 mm/175 g
Rear Camera Connection Coaxial cable
Memory Support microSD card up to 256GB
Recording Modes – Normal,
– Event (Impact Detection / Speed Limit / Manual),
– Parking Mode (Impact+Region-based Motion Detection, Timelapse+Events)
Parking Mode YES (with accessory)
Parking Mode Event Voice Notifications YES
Imaging Sensor Front: Rear: Sony STARVIS™ CMOS Sensor (Approx. 2.1MP)
Rear: Rear: Sony STARVIS™ CMOS Sensor (Approx. 2.1MP)
Viewing Angle Front: Diagonal 139°, Horizontal 116°, Vertical 61°
Rear: Diagonal 116°, Horizontal 97°, Vertical 51°
Resolution Frame Rate Front / Rear
Full HD (1920×1080) @60fps – Full HD (1920×1080) @30fps
* Frame rate may vary during Wi-Fi streaming.
Video Codec H.264 (AVC)
Image Quality and Bitrate Front/Rear Highest (Extreme): 25+10 Mbps
Highest: 12+10 Mbps
High: 10+8 Mbps
Normal: 8+6 Mbps
Format Free YES (Adaptive)
Event File Overwrite Protection YES (up to 50)
SD Card Failure Alert YES
Scheduled Reboot YES
Video File Extension MP4
Wi-Fi Built-in (802.11n (2.4~2.4835 GHz))
Cloud Compatible YES
GPS Built-in
Microphone Built-in
Speaker Built-in
Impact Sensor 3-Axis Acceleration Sensor
LED Indicators Front: REC LED, GPS LED, B/W /L LED, Front Security LED
Rear: Interior Security LED
Rear Camera IR Illumination 940 nm (4 Infrared (IR) LEDs)
Button Wi-Fi button: turn Wi-Fi ON/OFF.
Format button: format the microSD card (hold until voice prompt, and then hold again).
Proximity sensor: audio recording ON/OFF or Start Manual Event video. Can be deactivated.
All actions are confirmed by a voice prompt.
Operation Temperature -20℃ – 70℃ (-4°F – 158°F)
Storage Temperature -20℃ – 70℃ (-4°F – 158°F)
High Temp Cut Off Approx. 80℃ (176°F)
Backup Battery Built-in supercapacitor
Input Power DC 12V-24V (DC Plug (Ø3.5 x Ø1.35), MAX 1A/12V)
Power Consumption Hour Avg. 410 mA (4.92 W at 12 V, GPS ON / Wi-Fi ON)
Avg. 290 mA (3.48 W at 12 V, GPS OFF / Wi-Fi OFF)
Avg. 430 mA (5.16 W at 12 V, GPS ON / LTE ON)
* Approx. 40mA increase in current when IR LEDs are ON.
* Actual power consumption may vary depending on use conditions and environment.
* Model DR750X-2CH LTE Plus should be used only in circuits that satisfy Limited Power Source.
(Maximum power consumption is to be less than 100 VA or 8 A).
CertificationsFront: FCC, CE, Telec, IC, UKCA, RoHS, WEEE, RCM, KC
Rear: FCC, IC CE, UKCA, RCM, RoHS, WEEE, KC
software BlackVue Viewer
* Windows 7 or higher and Mac OS X Sierra v10.12 or higher
Application BlackVue Application (Android 5.0 or higher, iOS 11.0 or higher)
Others Built-in 4G LTE module compatible with Nano-SIM.
Frequency Bands: North America (NA version): B2, B4, B12 | Global (GL version): B1, B3, B7, B20
Bluetooth Built-in (V2.1+EDR/4.2)
LTEBuilt-in (BlackVue SIM included with NA model only)
Specifications
Model Name DR750X-3CH TRUCK Plus
Channel3CH
Highlights Full HD + Full HD + HD (Front + Rear + Interior), Cloud, Wi-Fi, GPS, Dual Sony Sensors, External LTE Module
Product Dimensions Front:Black / W 118.5 mm (4.67″) x H 36 mm (1.42″) / 105 g (3.70 oz)

Rear: Black / W 70 mm x H 44.4 mm / 175 g (6.17 oz)

Interior: Black / W 67.4 mm x H 25 mm / 22 g (0.78 oz)
Rear Camera Connection Coaxial cable
Memory Support microSD card up to 256GB
Recording Modes – Normal,
– Event (Impact Detection / Speed Limit / Manual),
– Parking Mode (Impact+Region-based Motion Detection, Timelapse+Events)
Parking Mode YES (with 3-wire hardwiring cable – included)
Parking Mode Event Voice Notifications YES
Imaging Sensor Front: Sony STARVIS™ CMOS Sensor (Approx. 2.1 M Pixel)

Rear: Sony STARVIS™ CMOS Sensor (Approx. 2.1 M Pixel)

Interior: Sony CMOS Sensor (Approx.1.27 M Pixel)
Viewing Angle Front : Diagonal 139°, Horizontal 116°, Vertical 61°

Rear : Diagonal 116°, Horizontal 97°, Vertical 51°

Interior : Diagonal 119°, Horizontal 98°, Vertical 55°
Resolution Frame Rate Front / Rear / Interior

Full HD (1920×1080) @ 60 fps – Full HD @ 30 fps (1920×1080) – HD (1280×720) @ 30 fps

*Frame rate may vary during Wi-Fi streaming.
Video Codec H.264 (AVC)
Image Quality and Bitrate Front/Rear Front / Rear / Interior

Highest (Extreme): 16 + 10 + 8 Mbps

Highest: 12 + 10 + 8 Mbps

High: 10 + 8 + 6 Mbps

Normal: 8 + 6 + 4 Mbps
Format Free YES (Adaptive)
Event File Overwrite Protection YES (up to 50)
SD Card Failure Alert YES
Scheduled Reboot YES
Video File Extension MP4
Wi-Fi Built-in (802.11 b.g.n)
Cloud Compatible YES
GPS Built-in (Dual Band : GPS, GLONASS)
Microphone Built-in
Speaker Built-in
Impact Sensor 3-Axis Acceleration Sensor
LED Indicators Front: Recording LED, GPS LED, B/W/L LED, Front Security LED

Rear: Rear Security LED

Interior: Interior Security LED
Rear Camera IR Illumination Interior USB and External Rear: 940 nm (4 Infrared (IR) LEDs)
Button Button: Wi-Fi ON/OFF (Press)
Proximity sensor: Mic ON/OFF / Trigger Manual Recording / OFF (configurable)
Operation Temperature -20℃ – 80℃ (-4°F – 176°F)
Storage Temperature -20℃ – 80℃ (-4°F – 176°F)
High Temp Cut Off Approx. 75℃ (167°F)
Backup Battery Built-in supercapacitor
Input Power DC 12V-24V (DC Plug (Ø3.5 x Ø1.1)) to Wires (Black: GND / Yellow: B+ / Red: ACC)
Power Consumption Hour Normal Mode (Wi-Fi On / GPS On / 3CH) : 520mA / 12V

Normal Mode (Wi-Fi Off / GPS On / 3CH) : 490mA / 12V

Parking Mode (Wi-Fi On / GPS Off / 3CH) : 475mA / 12V

Parking Mode (Wi-Fi Off / GPS Off / 3CH) : 445mA / 12V

* Approx. 50mA increase in current when IR LEDs are ON.

* Actual power consumption may vary depending on use conditions and environment.
CertificationsFront: FCC, CE, Telec, IC, UKCA, RoHS, WEEE, RCM

Rear: FCC, IC CE, UKCA, RCM, RoHS, WEEE

Interior: FCC, IC, CE, UKCA, RoHS, WEEE

USB Hub: FCC, IC, CE, UKCA, RoHS, WEEE
software BlackVue Viewer
* Windows 7 or higher and Mac OS X Sierra v10.12 or higher
Application BlackVue Application (Android 5.0 or higher, iOS 11.0 or higher)
Others Adaptive Format-Free File Management System
Bluetooth Built-in (V2.1+EDR/4.2)
LTEExternal (optional)
Specifications
Model Name DR750X-3CH DMS TRUCK Plus
Channel3CH
Highlights Full HD + Full HD + HD (Front + Rear + Interior), Cloud, Wi-Fi, GPS, Dual Sony Sensors, External LTE Module
Product Dimensions Front:Black / W 118.5 mm (4.67″) x H 36 mm (1.42″) / 105 g (3.70 oz)

Rear: Black / W70 mm x H 44.4 mm / 175 g (6.17 oz)

Interior: Black / W 67.4 mm x H 25 mm / 25 g (0.88 oz)
Rear Camera Connection Coaxial cable
Memory Support microSD card up to 256GB
Recording Modes – Normal,
– Event (Impact Detection / Speed Limit / Manual),
– Parking Mode (Impact+Region-based Motion Detection, Timelapse+Events)
Parking Mode YES (with 3-wire hardwiring cable – included)
Parking Mode Event Voice Notifications YES
Imaging Sensor Front: Sony STARVIS™ CMOS Sensor (Approx. 2.1 M Pixel)

Rear: Sony STARVIS™ CMOS Sensor (Approx. 2.1 M Pixel)

Interior: Sony CMOS Sensor (Approx.1.27 M Pixel)
Viewing Angle Front : Diagonal 139°, Horizontal 116°, Vertical 61°

Rear : Diagonal 139°, Horizontal 116°, Vertical 61°

Interior : Diagonal 119°, Horizontal 98°, Vertical 55°
Resolution Frame Rate Front / Rear / Interior

Full HD (1920×1080) @ 60 fps – Full HD @ 30 fps (1920×1080) – HD (1280×720) @ 10 fps

*Frame rate may vary during Wi-Fi streaming.
Video Codec H.264 (AVC)
Image Quality and Bitrate Front/Rear Front / Rear / Interior

Highest (Extreme): 16 + 10 + 8 Mbps

Highest: 12 + 10 + 8 Mbps

High: 10 + 8 + 6 Mbps

Normal: 8 + 6 + 4 Mbps
Format Free YES (Adaptive)
Event File Overwrite Protection YES (up to 50)
SD Card Failure Alert YES
Scheduled Reboot YES
Video File Extension MP4
Wi-Fi Built-in (802.11 b.g.n)
Cloud Compatible YES
GPS Built-in (Dual Band : GPS, GLONASS)
Microphone Built-in
Speaker Built-in
Impact Sensor 3-Axis Acceleration Sensor
LED Indicators Front: Recording LED, GPS LED, B/W/L LED, Front Security LED

Rear: Rear Security LED

DMS: Status Security LED
Rear Camera IR Illumination Interior USB: 940 nm (4 Infrared (IR) LEDs)
Button Button: Wi-Fi ON/OFF (Press)
Proximity sensor: Mic ON/OFF / Trigger Manual Recording / OFF (configurable)
Operation Temperature -20℃ – 80℃ (-4°F – 176°F)
Storage Temperature -20℃ – 80℃ (-4°F – 176°F)
High Temp Cut Off Approx. 75℃ (167°F)
Backup Battery Built-in supercapacitor
Input Power DC 12V-24V (DC Plug (Ø3.5 x Ø1.1)) to Wires (Black: GND / Yellow: B+ / Red: ACC)
Power Consumption Hour Normal Mode (Wi-Fi On / GPS On / 3CH) : 670mA / 12V

Normal Mode (Wi-Fi Off / GPS On / 3CH) : 630mA / 12V

Parking Mode (Wi-Fi On / GPS Off / 3CH) : 370mA / 12V

Parking Mode (Wi-Fi Off / GPS Off / 3CH) : 320mA / 12V

* Approx. 80mA increase in current when IR LED are ON.

* Actual power consumption may vary depending on use conditions and environment.
CertificationsFront: FCC, CE, Telec, IC, UKCA, RoHS, WEEE, RCM

Rear: FCC, IC CE, UKCA, RCM, RoHS, WEEE

Interior: FCC, IC, CE, UKCA, RoHS, WEEE

USB Hub: FCC, IC, CE, UKCA, RoHS, WEEE
software BlackVue Viewer
* Windows 7 or higher and Mac OS X Sierra v10.12 or higher
Application BlackVue Application (Android 5.0 or higher, iOS 11.0 or higher)
Others Adaptive Format-Free File Management System
Bluetooth Built-in (V2.1+EDR/4.2)
LTEExternal (optional)

The Perfect Dashcams for Trucks and Heavy Vehicles

The external waterproof rear cam with embedded IR lights and 15m (49ft) coaxial cable is ideal for most large vehicles.

Catch detailed footage of the front surroundings of your vehicle at 1080p Full HD 60FPS and rear at 1080p Full HD 30FPS.
The front and rear cameras both use cutting-edge Sony STARVIS sensors, with the rear camera being augmented by 6 IR LEDs for clarity in total darkness.

Native Parking Mode

Hardwiring cable included
DR750X Plus Series can be hardwired to your vehicle’s fuse panel for Parking Mode, without requiring optional accessories. The dashcam will switch to Parking Mode automatically when vehicle ignition is turned off. Voltage cutoff and timer can be set in the BlackVue App.

Parking Mode accessories support
DR750X Plus Series is also compatible with all BlackVue Parking Mode Kits and Batteries.

Driver-Monitoring Camera
(3CH DMS TRUCK Plus model)

The infrared Driver-Monitoring Camera (DMC100) is designed to improve driver’s safety by helping prevent risky driving behaviors. The DMC100 monitors the driver at all times. Its algorithm can detect statuses such as:

  • Distracted driving
  • Drowsy driving
  • Driver detected/undetected

As soon as a potentially dangerous situation is detected, the DMC100 emits a beep to alert the driver and triggers push notifications if connected to the Cloud.

Seamless Pairing with the BlackVue App

Effortless setup.

Simply connect to your dashcam without leaving the BlackVue App. With Seamless Pairing, setting up your dashcam is a breeze. Just power the dashcam, then easily connect from the BlackVue app and follow the simple instructions.

Whether you want to browse your dashcam’s files and settings or connect your dashcam to the Cloud, Seamless Pairing makes everything easy and intuitive.
