LTE Connectivity Module

USD169.00

USB Plug-in Connectivity Module (CM100LTE) for DR900X and DR750X dashcams.
Empower your BlackVue dashcam with 4G LTE connectivity.

Clear
SKU: KRHQA-CM100LTE- Categories ,
  • Features

  • Technical Specifications

  • Package info

  • Downloads

  • Delivery and Returns Information

External 4G LTE Module

The CM100LTE connects to your compatible BlackVue X Series dashcam to provide easy 4G LTE connectivity. All you need is a valid Nano SIM card. The CM100LTE connects via the USB port of your dashcam. Your BlackVue powers the module and automatically accesses the Cloud when the module is plugged in.

Note: when purchasing, make sure the CM100LTE you choose is compatible with your mobile carrier’s network. Not compatible with DR590X Series.

LTE Connectivity Module

With DR900X and DR750X, you can connect an LTE Connectivity Module (CM100LTE) which is powered by the dashcam and provides 4G LTE connectivity for your dashcam. This allows you to connect your dashcam to BlackVue Cloud and receive notifications to your phone when your parked car gets hit. It also lets you remotely see what your dashcam sees in real time. Being powered by the dashcam, you do not need to worry about the CM100LTE running out of power like you might with a self-powered router.

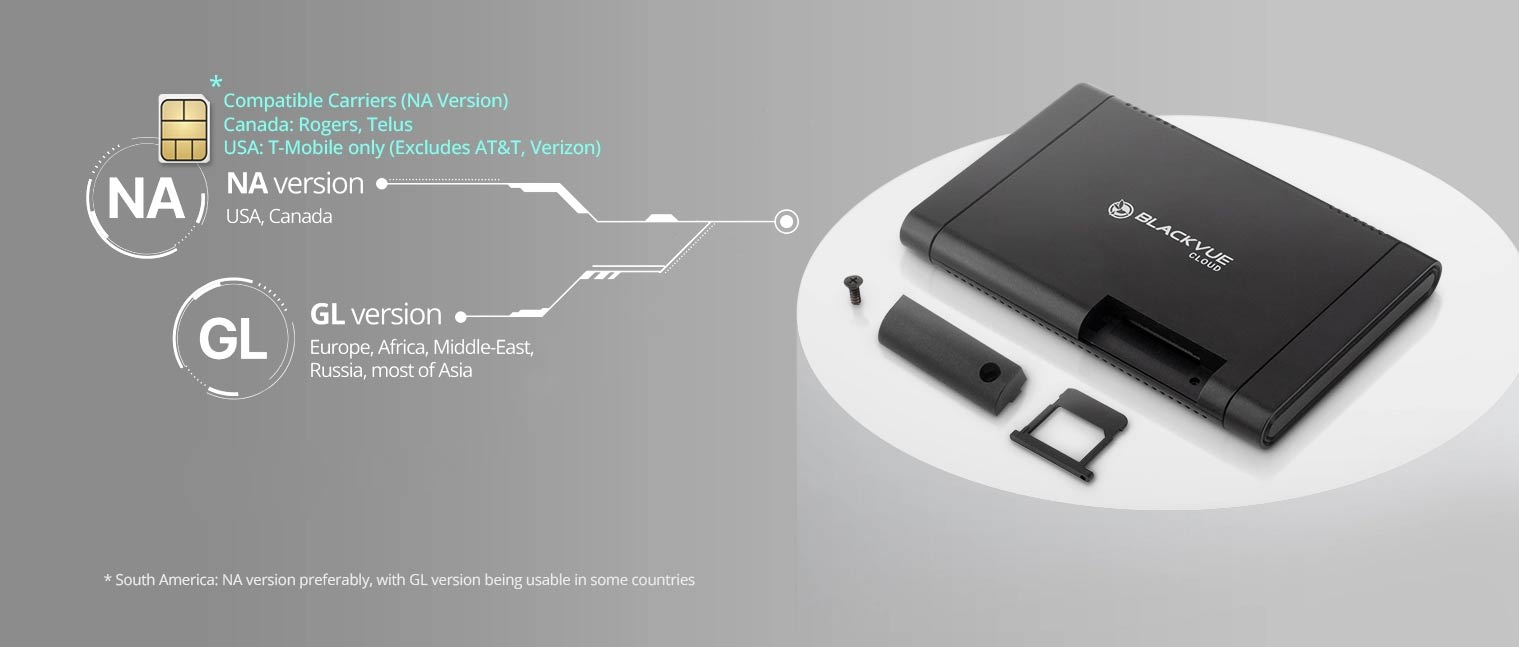

Pick the right version

The CM100LTE takes Nano SIM cards and comes in multiple variations: pick one that matches your location.
Which version will work for you depends mostly on the LTE frequency bands supported by your local carrier(s).

USA, Canada: NA version
Europe, Africa, Middle-East, Russia, most of Asia: GL version
Australia, New Zealand: AU version
Japan: JP version
South America: NA version preferably, with GL version being usable in some countries

CM100LTE versionSupported bandsMain Carrier
NA (North America)B2, B4, B12US: AT&T, T-Mobile; Canada: Rogers, Telus. Preferred for most of South America except Brazil.
GL (Global)B1, B3, B7, B20Europe: most of the main carriers.Suitable for Africa, Middle-East, Russia, Brazil, Asia. May be suitable for South America.
AU (Australia)B1, B3, B5Vodafone. Also recommended for New Zealand.
JP (Japan)B1, B3, B18, B19NTT Docomo

Technical Specifications

Model NameCM100 LTE
Color/Size/WeightBlack / Length 90 mm x Width 60 mm x Height 10 mm / 74g
LTE ModuleCM100LTE [GL] : Quectel EC25-E CM100LTE [NA] : Quectel EC25-A CM100LTE [JP] : Quectel EC25-J CM100LTE [AU] : Quectel EC25-AU
LTE Supported BandEC25-E : B1/B3/B5/B7/B8/B20 EC25-A : B2/B4/B12 EC25-J : B1/B3/B8/B18/B19/B26 EC25-AU : B1/B2/B3/B4/B5/B7/B8/B28
LTE Features Support up to Non-CA CAT. 4 FDD and TDD LTE-FDD : Max 150Mbps(DL) / Max 50Mbps(UL) LTE-TDD : Max 130Mbps(DL) / Max 30Mbps(UL)
Transmitting PowerClass 3 : 23dBm +/-2dBm @ LTE-FDD Bands Class 3 : 24dBm +1/-3dBM @ WCDMA Bands
SIM TypeSupport Nano SIM Card / 3.0V
Connector TypeMicro USB Type-B Connector with Harness Cable
USB InterfaceCompliant with USB 2.0 specification(Slave Only), Reach up to 480Mbps for data transfer rate
Antenna TypeFixed / Intenna (Main, Diversity)
Power SupplyUSB Harness Cable : 3.0m Typical Supply Voltage : 5.0V / 1A Supply Input Voltage : 3.3V ~ 5.5V / Max. Current : 2A
Power ConsumptionIdle Mode : 20mA / Traffic Mode : 570mA @ Max. Power (23dBm)
Temperature RangeOperation Temperature Range : -35°C ~ +75°C Storage Temperature Range : -40°C ~ +85°C
CertificationsPTCRB, FCC, ISED, RCM, TELEC, WEEE, RoHS
Weight 0.3 kg
Dimensions 21 × 15 × 14 cm
Icon

CM100LTE User Guide

1 file(s) 1.4 MB
