DR590X-2CH

USD259.00USD448.99

Simple Dual Full HD Wi-Fi Dash​cam with Sony’s STARVIS™ image sensor.

Clear
    • 0 USD
    • 0 USD
    Reset options
  • Features

  • Package info

  • What's Included

  • Technical Specs

  • Delivery and Returns Information

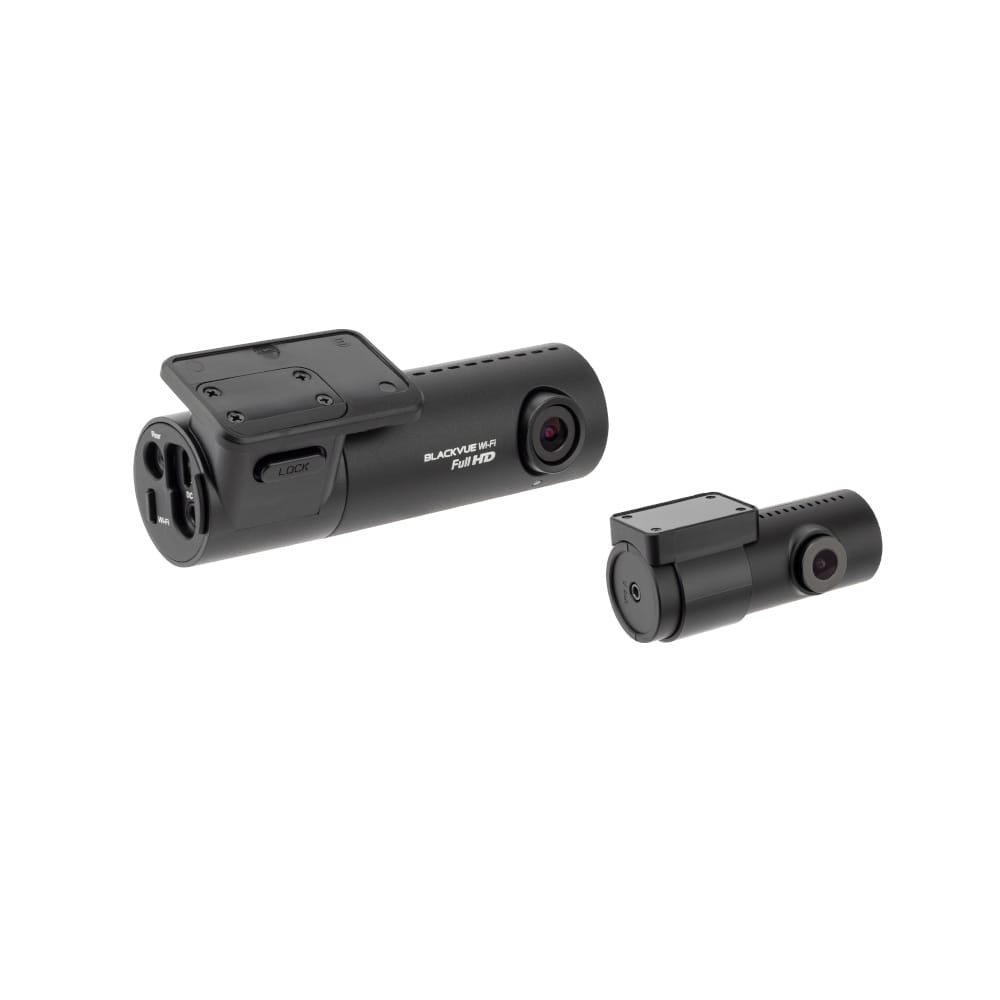

Simple Dual Full HD Wi-Fi Dashcam

Outstanding Dual Full HD quality in a small form factor, featuring Sony’s STARVIS™ image sensor in the front camera for better clarity in low light.

The DR590X-2CH records both front and back or interior of your vehicle in Full HD 1080p.

Built-in Wi-Fi: easily adjust settings and transfer videos to your phone with the BlackVue App.

blackvue-dr590x-2ch

Dual Full HD Wi-Fi Dashcam

Full HD 1080p front and rear @30fps: the DR590X-2CH records Full HD 1080p videos of the front and back of your car at 30 frames per second, in a 139-degree wide view angle. With the front camera’s Sony STARVIS imaging sensor, you get awesome image clarity day and night.

Built-in Wi-Fi: connect to your dashcam with the BlackVue App to adjust settings, check the view from the front and rear cameras or transfer files to your mobile device.

STARVIS is a trademark of Sony Corporation.

Native Parking Mode

With optional Hardwiring cable
DR590X can be hardwired to your vehicle’s fuse panel for Parking Mode with the optional Hardwiring cable. The dashcam will switch to Parking Mode automatically when vehicle ignition is turned off. Voltage cutoff and timer can be set in the BlackVue App.

Parking Mode accessories support
DR590X Series is also compatible with all BlackVue Parking Mode Kits and Batteries.

blackvue-native-parking-mode
blackvue-dr590x-2ch-button-usb-port

Built-in Wi-Fi and Optional Connectivity

Built-in Wi-Fi:
The DR590X-2CH features built-in Wi-Fi to let you connect with the BlackVue App. A button lets you turn Wi-Fi on/off.

Additionally, you can configure the Wi-Fi activation behavior in the settings (Auto Turn On, Auto Turn Off).

USB port:
The USB port lets you connect a GPS receiver or LTE-M and GPS receiver combo module.

Your videos are safe

Event Files Overwrite Protection: dashcams record in a loop, overwriting older files when the memory is full. BlackVue can prevent Event files (triggered manually or by impacts) overwriting. Up to fifty (50) files can be protected this way. You can choose to allow new Event files to overwrite past Event files, thus keeping the latest fifty.

Adaptive Format-Free File Management: this BlackVue-developed file system improves recording stability and requires less microSD card formatting.

SD Card Failure Alert: your BlackVue detects as soon as the microSD card fails and warns you with a “Please check SD card” voice alert.

blackvue-micro-sd-adaptive-format-free

Built-in Impact & Motion Detection

Automatically tags important files
While driving, your BlackVue detects impacts and sudden changes in speed. While parked, it also detects movements*.

Use the filters in the BlackVue App and Viewer
All videos are tagged (Normal, Event, Parking Mode motion or time lapse), so that you can easily find the relevant ones in the BlackVue Viewer for Windows and Mac OS or the BlackVue App for Android and iOS.

External GPS Receiver (Optional)

The External GPS Receiver connects to the USB port to add speed and location data to your videos.
Speed:
 speed data–in Km/h or Mph–will be overlaid in the video (can be turned off in the settings).
Location: you can visualize the location of your vehicle in the BlackVue Viewer’s Map during video playback.

External LTE-M / GPS Combo Module (TBD)

Unavailable at this time.

Enjoy BlackVue Cloud Lite with this LTE-M connectivity module. The CM100GLTE-M connects to your compatible BlackVue X Series dashcam via the micro USB port to provide easy LTE-M connectivity. The SIM card and data plan are included. When plugged in, your BlackVue powers the module and once registered, automatically accesses the Cloud.

Manage Videos Easily with the BlackVue App and Viewer

The BlackVue App (iOS/Android) and Viewer (Windows/Mac OS) are free to download and use.
Both allow you to change settings and review videos sorted by time and type (Normal/Event/Parking).
With the BlackVue App, connect via Wi-Fi to your dash​cam to retrieve videos on the spot.

Set up (easily) and forget

BlackVue dashcams are very easy to install. Attach the front unit to the windshield behind the rear view mirror with the provided double-sided tape.
This way, the dashcam is invisible to the driver’s eye. Simply plug the power cords into the cigarette lighter / accessory power socket of your vehicle and it will automatically start recording as you turn ignition on. Once set, you can forget about it, knowing it will reliably record your drive.

Parking Mode Support

The DR590X Series is compatible with Parking Mode. In Parking Mode, your dashcam monitors your parked vehicle, recording videos when it detects movement or impact. It also includes the few seconds before the triggering event, thanks to buffered recording. You will need a 3-wire Hardwiring cable or Power Magic Battery Pack or Ultra Battery to enable this feature. Find more info about Parking Mode here (link opens in new tab).

And also:

Parking Mode Event Voice Notifications:
Upon exiting Parking Mode, your BlackVue tells you if Events were recorded when you were away from your car, so you can check right away the Event videos on the BlackVue App.

Scheduled Reboot:
Schedule a daily automatic reboot (optional—at night by default) to minimize potential errors. Reboots happen only if the dashcam is in Parking Mode and not writing data to the microSD card.

Super stealthy:
Completely turn off all LED indicators in Parking Mode. Only the recording LED indicator facing the interior of the vehicle will blink when motion or impact is detected.

Weight 1 kg
Dimensions 21 × 15 × 14 cm
MEMORY CAPACITY 32GB, 64GB, 128GB, 256GB
GPS RECEIVER External GPS included, External GPS not included

What's Included

  • Front Camera
  • Rear Camera
  • Rear camera connection cable (6m / 19.68ft)
  • Cigarette lighter power cable
  • microSD Card
  • microSD Card adapter
  • Quick start guide
  • Cable clips (5EA)
  • Double-sided tapes for the Mounting Brackets
  • External GPS (Optional)
  • Hardwiring power cable (Optional)
Specifications
Model NameDR590X-2CH
Channel

2CH

Highlights

Full HD (Front + Rear), Wi-Fi, External GPS, Sony Sensor, External LTE Module (Optional)

Product Dimensions

Front: W 111.8 mm (4.40″) x H 34 mm (1.34″) / 87.8 (3.10 oz)
Rear:  W 67.4 mm (2.55″) x H 25 mm (0.98″) / 20.3 g (0.72 oz)

Rear Camera Connection

Analog cable

Memory Support

microSD card up to 256GB

Recording Modes

– Normal,
– Event (Impact Detection / Speed Limit),
– Parking Mode (Motion+Impact Detection)

Parking Mode

YES (with optional 3-wire hardwiring cable)

Parking Mode Event Voice Notifications

YES

Imaging Sensor

Front: Sony STARVIS™ CMOS Sensor (Approx. 2.1MP)
Rear: CMOS Sensor (Approx. 2MP)

Viewing Angle

Front: Diagonal 139°, Horizontal 116°, Vertical 61°
Rear: Diagonal 136.8°, Horizontal 111.3°, Vertical 57.5°

Resolution Frame Rate

Front / Rear
Full HD @30fps – Full HD @30fps
* Frame rate may vary during Wi-Fi streaming.

Video Codec

H.264 (AVC)

Image Quality and Bitrate Front/Rear

Highest: 12+10 Mbps
High: 10+8 Mbps
Normal: 8+6 Mbps

Format Free

YES (Adaptive)

Event File Overwrite Protection

YES

SD Card Failure Alert

YES

Scheduled Reboot

YES

Video File Extension

MP4

Wi-Fi

Built-in (802.11 b.g.n)

Cloud Compatible

Cloud Lite

GPS

External (Optional – Dual Band: GPS, GLONASS)

Microphone

Built-in

Speaker

Built-in

Impact Sensor

3-Axis Acceleration Sensor

LED Indicators

Front: Recording LED, GPS LED, LTE/Wi-Fi LED, Front Security LED
Rear: Rear Security LED

Button

Button: Wi-Fi ON/OFF

Operation Temperature

-20℃ – 70℃ (-4°F – 158°F)

Storage Temperature

-20℃ – 80℃ (-4°F – 176°F)

High Temp Cut Off

Approx. 70℃ (158°F)

Backup Battery

Built-in supercapacitor

Input Power

DC 12V-24V (DC Plug (Ø3.5 x Ø1.1)) to Wires (Black: GND/Yellow: B+/Red: ACC)

Power Consumption Hour

Normal Mode (WiFi On/GPS On): 370mA/hour
Normal Mode (WiFi Off/GPS On): 330mA/hour
Parking Mode (WiFi On/GPS Off): 340mA/hour
Parking Mode (WiFi Off/GPS Off): 300mA/hour

When connected to CM100GLTE-M (Optional)
Normal Mode (WiFi On/GPS On): 440mA/hour
Normal Mode (WiFi Off/GPS On): 400mA/hour
Parking Mode (WiFi On/GPS Off): 370mA/hour
Parking Mode (WiFi Off/GPS Off): 330mA/hour
* Actual power consumption may vary depending on use conditions and environment.

Certifications

Front: FCC, CE, RoHS, Telec, WEEE, IC
Rear: FCC, CE, RoHS, WEEE

software

BlackVue Viewer
* Windows 7 or higher and Mac Yosemite OS X (10.10) or
higher

Application

BlackVue Application (Android 5.0 or higher, iOS 9.0 or higher)

Others

Adaptive Format-Free File Management System

LTEExternal (Optional - Cat.M1)

Recording time

ModelMemory
Capacity
Image QualityResolution
DR590-2CH/ DR590W-2CH/
DR590-2CH IR/ DR590W-2CH IR
Full HD @30fps
+ Full HD @30fps
Full HD @30fps
+ HD @30fps
HD @30fps
+ HD @30fps
16GBHighest1 HR 25 MIN 1 HR 35 MIN 2 HR
High1 HR 50 MIN 2 HR 2 HR 40 MIN
Normal2 HR 20 MIN 2 HR 40 MIN 4 HR
32GBHighest2 HR 50 MIN 3 HR 10 MIN 4 HR
High3 HR 40 MIN 4 HR 5 HR 20 MIN
Normal4 HR 40 MIN 5 HR 20 MIN 8 HR
64GBHighest5 HR 40 MIN 6 HR 20 MIN 8 HR
High7 HR 20 MIN 8 HR 10 HR 40 MIN
Normal9 HR 20 MIN 10 HR 40 MIN 16 HR
128GBHighest11 HR 20 MIN 12 HR 40 MIN 16 HR
High 14 HR 40 MIN 16 HR 21 HR 20 MIN
Normal18 HR 40 MIN 21 HR 20 MIN 32 HR
Bitrate (Mbps) Front + RearHighest12 + 10 12 + 8 8 + 8
High10 + 8 10 + 6 6 + 6
Normal8 + 68 + 4 4 + 4
