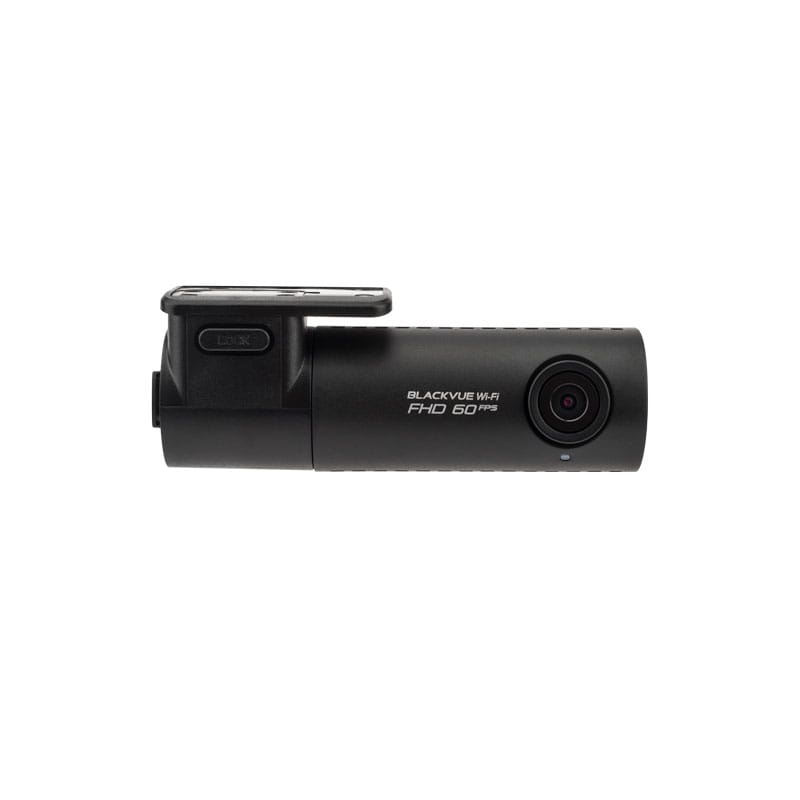

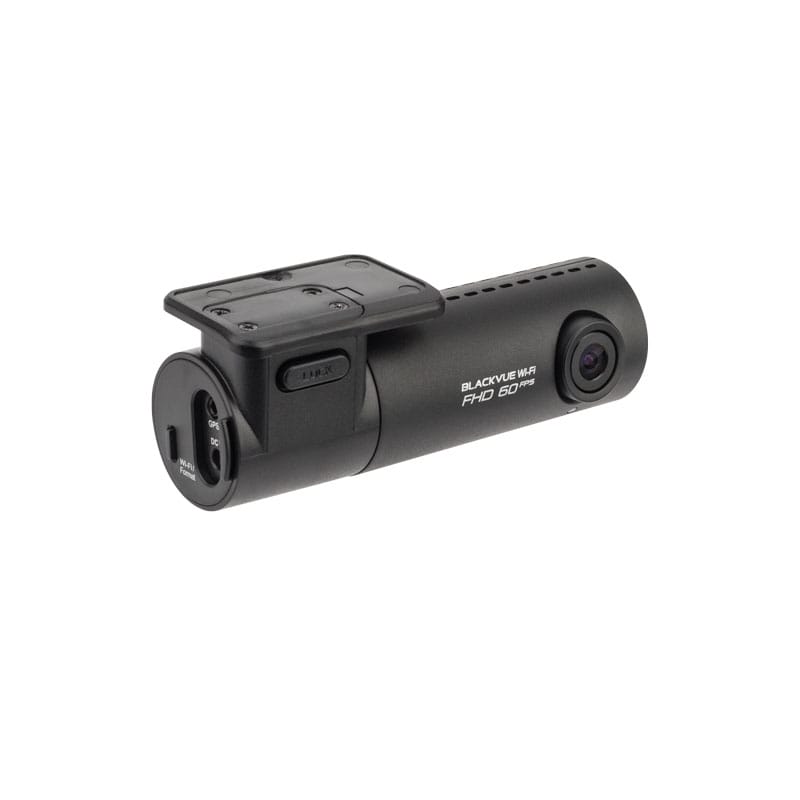

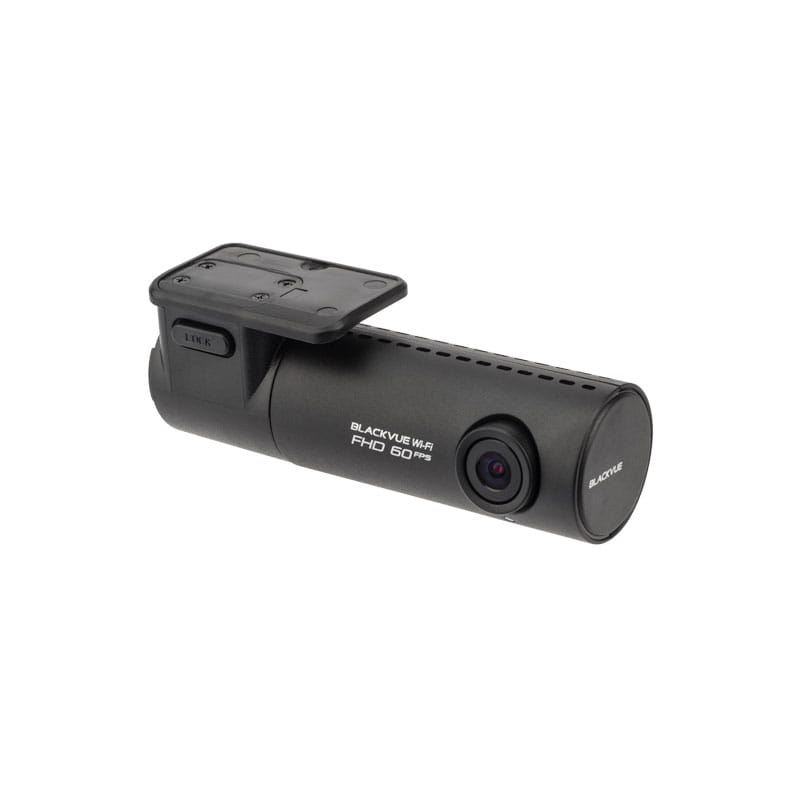

DR590W-1CH

USD179.00USD360.00

Simple Full HD 60FPS Wi-Fi Dash​cam with Sony’s STARVIS™ image sensor.

Clear
    • 0 USD
    • 0 USD
    • 0 USD
    Reset options
  • Features

  • Package info

  • What's Included

  • Technical Specs

  • Delivery and Returns Information

Full HD 60FPS video and Wi-Fi connectivity

The DR590W-1CH records Full HD 1080p 60FPS videos at a 139-degree wide view angle.
With the Sony STARVIS™ imaging sensor, you get awesome image clarity day and night.

BUILT-IN WI-FI

Connect with the BlackVue App for iOS/Android to adjust settings and download videos to your phone.

60 frames per second recording

The DR590W-1CH records super fluid videos at a high frame rate of 60 frames per second.
This means videos look more lifelike and the dashcam can better catch details in fast moving objects thanks to reduced motion blur.

Set up (easily) and forget

BlackVue dashcams are very easy to install. Attach the front unit to the windshield behind the rear view mirror with the provided double-sided tape.
This way, the dashcam is invisible to the driver’s eye. Simply plug the power cords into the cigarette lighter / accessory power socket of your vehicle and it will automatically start recording as you turn ignition on. Once set, you can forget about it, knowing it will reliably record your drive.

Parking Mode Support

The DR590W-1CH is compatible with Parking Mode. In Parking Mode, your dashcam monitors your parked vehicle, recording videos when it detects movement or impact. It also includes the few seconds before the triggering event, thanks to buffered recording. You will need a Power Magic Pro or Power Magic Battery Pack to enable this feature. Find more info about Parking Mode here (link opens in new tab).

Secure Memory Management

Loop Recording: the DR590W-1CH records over the oldest video files first when the microSD card is full, in a seamless loop.

Adaptive Format-Free Technology: your BlackVue saves and organizes files on the microSD card in a highly efficient way. It reduces the need for formatting the card and prevents file corruption even after multiple write cycles.

Manage Videos Easily with the BlackVue App and Viewer

The BlackVue App (iOS/Android) and Viewer (Windows/Mac OS) are free to download and use.
Both allow you to change settings and review videos sorted by time and type (Normal/Event/Parking).
With the BlackVue App, connect via Wi-Fi to your dash​cam to retrieve videos on the spot.

External GPS Receiver (Optional)

The External GPS Receiver (G-1E) adds speed and location data to your videos.
Speed:
 speed data–in Km/h or Mph–will be overlaid in the video (can be turned off in the settings).
Location: you can visualize the location of your vehicle in the BlackVue Viewer’s Map during video playback.

Weight1 kg
Dimensions21 × 15 × 14 cm
MEMORY CAPACITY32GB, 64GB, 128GB, 256GB
GPS RECEIVERExternal GPS included, External GPS not included

What's included

  • Front Camera
  • Rear Camera
  • Rear camera connection cable
  • microSD Card
  • Power cord
  • External GPS (Optional)
  • microSD Card adapter
  • Quick start guide
  • Cable clips (5EA)
Specifications
Model NameDR590W-1CH
Channel

1CH

Highlights

Full HD, 60fps, Wi-Fi, External GPS, Sony Sensor

Product Dimensions

W 111.8 mm (4.40″) x H 34 mm (1.34″) / 62 g (2.19 oz)

Memory Support

microSD card up to 256GB

Recording Modes

– Normal,
– Event (Impact Detection / Speed Limit),
– Parking Mode (Motion+Impact Detection)

Parking Mode

YES (with accessory)

Parking Mode Event Voice Notifications

YES

Imaging Sensor

Sony STARVIS™ CMOS Sensor (Approx. 2.1MP)

Viewing Angle

Diagonal 139°, Horizontal 116°, Vertical 61°

Resolution Frame Rate

-Full HD (1920×1080) @60fps
-Full HD (1920×1080) @30fps
-HD (1280×720) @30fps

Video Codec

H.264 (AVC)

Image Quality and Bitrate Front/Rear

Highest (Extreme): 25 Mbps
Highest: 12 Mbps
High: 10 Mbps
Normal: 8 Mbps

Format Free

YES (Adaptive)

Scheduled Reboot

YES

Video File Extension

MP4

Wi-Fi

Built-in (802.11n (2.4~2.4835 GHz))

Cloud Compatible

NO

GPS

External (optional)

Microphone

Built-in

Speaker

Built-in

Impact Sensor

3-Axis Acceleration Sensor

LED Indicators

Recording LED, GPS LED, Security LED

Button

Button: Wi-Fi ON/OFF / Format microSD

Operation Temperature

-20℃ – 70℃ (-4°F – 158°F)

Storage Temperature

-20℃ – 80℃ (-4°F – 176°F)

High Temp Cut Off

Approx. 70℃ (158°F)

Backup Battery

Built-in supercapacitor

Input Power

DC 12V – 24V (DC Plug: (-)—C—(+) (Ø3.5 x Ø1.35), MAX 1A/12V)

Power Consumption Hour

Avg. 170mA ([email protected], 2.04W at 12V, when there is no external GPS receiver)
Avg. 210mA ([email protected], 2.52W at 12V, when an external GPS receiver is connected)

Certifications

FCC, CE, RoHS, Telec, WEEE, IC

software

BlackVue Viewer
*Windows XP or higher and Mac Yosemite OS X (10.10) or higher

Application

BlackVue Application (Android 4.4.2 or higher, iOS 9.0 or higher)

Others

Adaptive Format-Free File Management System

Recording time

ModelMemory Capacity Image Quality Resolution
DR590-1CH Full HD @60fpsFull HD @30fpsHD @30fps
16GBHighest2 HR 45 MIN 2 HR 45 MIN 4 HR
High3 HR 15 MIN 3 HR 15 MIN 5 HR 20 MIN
Normal4 HR 4 HR 8 HR
32GBHighest5 HR 30 MIN 5 HR 30 MIN 8 HR
High6 HR 30 MIN 6 HR 30 MIN 10 HR 40 MIN
Normal8 HR 8 HR 16 HR
64GBHighest11 HR 11 HR 16 HR
High13 HR 13 HR 21 HR 20 MIN
Normal 16 HR 16 HR 32 HR
128GBHighest22 HR 22 HR 32 HR
High 26 HR 26 HR 42 HR 40 MIN
Normal32 HR 32 HR 64 HR
Bitrate (Mbps) Highest12 Mbps12 Mbps8 Mbps
High10 Mbps10 Mbps6 Mbps
Normal8 Mbps8 Mbps4 Mbps
