DR750X-3CH DMS Plus
USD609.99 – USD769.99
BlackVue DR750X-3CH DMS Plus features front and rear video protection powered by Sony image sensors and a driver-monitoring camera to alert in case of drowsiness or distracted driving. Also included are GPS logger, built-in Wi-Fi, Cloud connectivity and built-in voltage monitoring for Parking Mode.
Delivery and Returns Information
Front / Rear Video
Driver Monitoring System

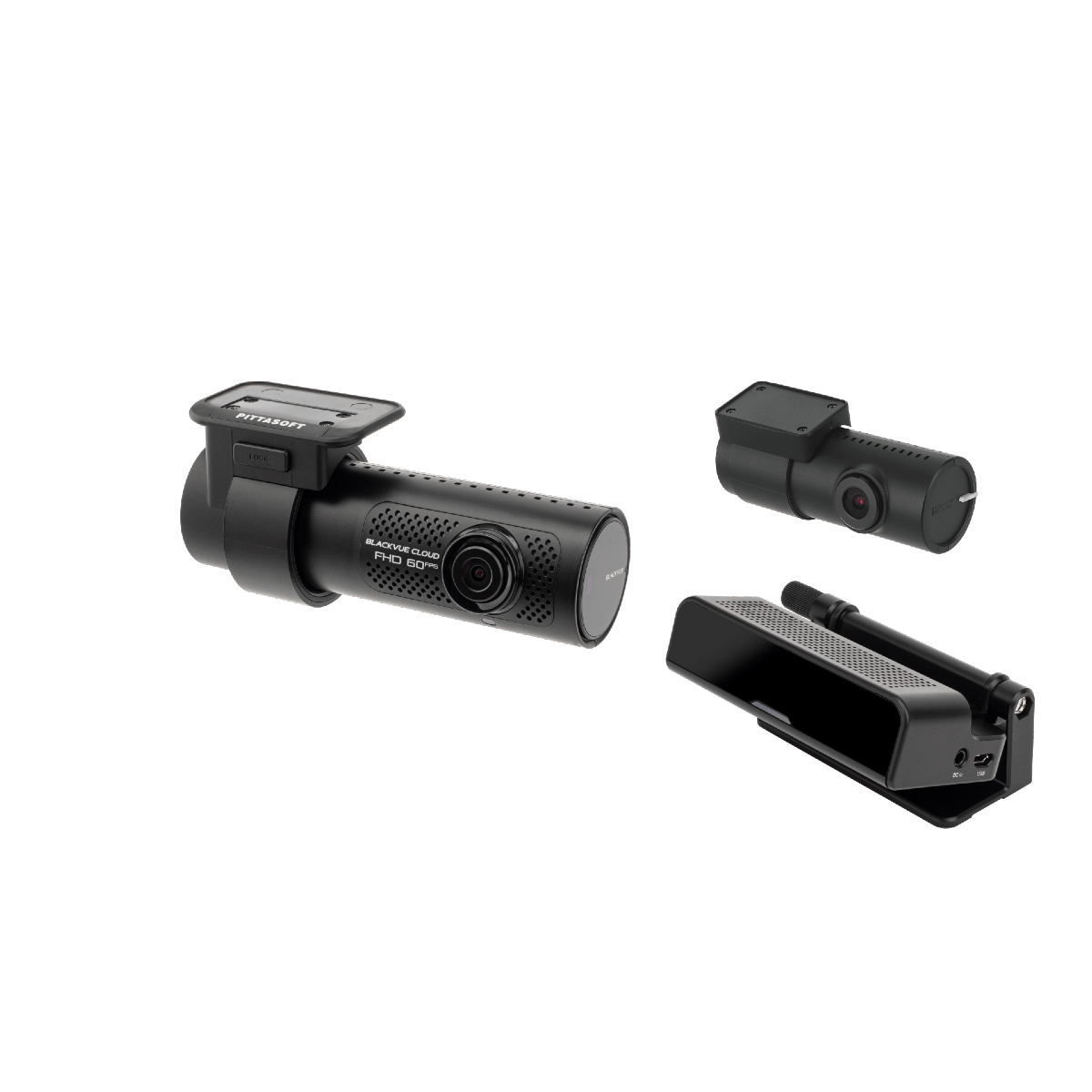

The DR750X-3CH DMS Plus is a triple-channel Cloud dash cam with a special-purpose driver-monitoring camera (DMC100).
Both front and rear cameras use back-illuminated Full HD Sony STARVIS™ image sensors for best image quality under any light.
The infrared Driver-Monitoring Camera records and detects signs of drowsiness or inattentive driving and alerts you in real time.
Cloud support via Wi-Fi hotspot or optional USB plug-in LTE module.
Front, Rear and Driver-Monitoring Cameras
Vehicle and driver safety
Dual STARVIS™ sensors in Full HD 1080p (front 60 / rear 30 frames per second / 139° view angle) + HD 720p (10 frames per second / 54° view angle) interior infrared camera with Sony CMOS sensor.
The back-illuminated STARVIS image sensors capture clear details in both shadows and highlights thanks to high sensitivity and wide dynamic range. With its infrared illumination LEDs, the Driver-Monitoring Camera can monitor the driver day and night and alert of drowsiness or distracted driving.
Native Parking Mode with built-in voltage monitor to protect your vehicle battery (hardwiring cable included).
With the free BlackVue Cloud service, check on your car from anywhere, anytime.
The infrared Driver-Monitoring Camera (DMC100) is designed to improve driver’s safety by helping prevent risky driving behaviors. The DMC100 monitors the driver at all times. Its algorithm can detect statuses such as:
- Distracted driving
- Drowsy driving
- Driver detected/undetected
As soon as a potentially dangerous situation is detected, the DMC100 emits a beep to alert the driver and triggers push notifications if connected to the Cloud.
GPS, Wi-Fi and Optional LTE
GPS: visualize the location of your vehicle on the map during video playback and overlay speed on videos (can be hidden in settings).
Wi-Fi: lets you connect to your BlackVue with a smartphone or tablet. Wi-Fi also lets your BlackVue connect to BlackVue Cloud via any home or mobile Wi-Fi hotspot (router).
LTE: for the best Cloud experience, the included USB Hub lets you connect the optional LTE connectivity module* along with the Driver-Monitoring Camera.
(*) SIM card not included.
Native Parking Mode
Hardwiring cable included
DR750X Plus Series can be hardwired to your vehicle’s fuse panel for Parking Mode, without requiring optional accessories. The dashcam will switch to Parking Mode automatically when vehicle ignition is turned off. Voltage cutoff and timer can be set in the BlackVue App.
Parking Mode accessories support
DR750X Plus Series is also compatible with all BlackVue Parking Mode Kits and Batteries.
Seamless Pairing with the BlackVue App
Simply connect to your dashcam without leaving the BlackVue App. With Seamless Pairing, setting up your dashcam is a breeze. Just power the dashcam, then easily connect from the BlackVue app and follow the simple instructions.
Whether you want to browse your dashcam’s files and settings or connect your dashcam to the Cloud, Seamless Pairing makes everything easy and intuitive.
Set up (easily) and forget
BlackVue dashcams are very easy to install. Attach the front unit to the windshield behind the rear view mirror with the provided double-sided tape.
This way, the dashcam is invisible to the driver’s eye. Simply plug the power cords into the cigarette lighter / accessory power socket of your vehicle and it will automatically start recording as you turn ignition on (no need to push any button).
Once set, you can forget about it, knowing it will reliably record your drive.
Your videos are safe
Event Files Overwrite Protection: dashcams record in a loop, overwriting older files when the memory is full. BlackVue can prevent Event files (triggered manually or by impacts) overwriting. Up to fifty-one (51) files can be protected this way (17 minutes Front/Rear/Interior). You can choose to allow new Event files to overwrite past Event files, thus keeping the latest fifty-one.
Adaptive Format-Free File Management: this BlackVue-developed file system improves recording stability and requires less microSD card formatting.
SD Card Failure Alert: your BlackVue detects as soon as the microSD card fails and warns you with a “Please check SD card” voice alert.
Built-in Impact & Motion Detection
Automatically tags video files
While driving, the built-in accelerometer (G-sensor) detects impacts and sudden changes in speed. While parked, your BlackVue also detects visual movements around your vehicles.
Use the filters in the BlackVue App and Viewer
BlackVue tags all videos (Normal, Event, Parking Mode, etc.), so that you can filter them and quickly find the ones you need in the BlackVue Viewer (Windows, Mac OS, Web) or the BlackVue App (Android, iOS).
Programmable proximity sensor
Toggle audio recording ON and OFF by simply waving your hand in front of it. The sensor can also be configured to trigger Manual Event videos in the settings.
Turn Wi-Fi ON/OFF with the push of a button. All actions are confirmed by a voice prompt.
Secure microSD card access
Unplug the DC in power connector and pop the cover open to reveal the microSD card slot.
BlackVue App (iOS, Android) and Viewer (Windows/Mac/Web)
Easily manage your video files
Easily change your BlackVue configuration settings and browse your videos on your mobile or computer.
With the BlackVue App, connect to your BlackVue to access files and check real-time Live View for easy setup of your dashcam.
With the SD Card Viewer, connect your dashcam’s microSD card to your computer to view and backup footage in bulk, as well as export clips, remove sound, etc.
The Web Viewer lets you manage your Cloud-connected dashcams from any web browser at blackvuecloud.com.
Me and My Car. Connected.
Connect to your BlackVue anytime, from anywhere in the world with BlackVue Cloud.
Receive Push Notifications on your phone whenever the dashcam detects an impact on your parked vehicle, and see for yourself with Remove Live View. Even better, let BlackVue upload critical footage—such as break-in or hit and run—in real time to the Cloud with Live Event Upload.
Play and download videos from your dashcam or the Cloud from anywhere and back up important videos to the free Cloud storage.
Enjoy Two-way Voice Communication with the driver from the app through the BlackVue’s integrated speaker and mic. Check the BlackVue Cloud page for more information.
High Frame Rate for Extra Fluidity
The advantage of 60FPS video capture
The front camera records extra fluid videos at 60 frames per second, keeping all details sharp even in fast action. With 60fps, motion blur is much reduced compared to 30fps. That means your BlackVue can better capture details–like license plates–even in fast-moving objects.
Note 1: the higher the image quality setting, the higher the bitrate and the bigger the file size. A bigger size will increase the time necessary to transfer a video file over Wi-Fi.
Note 2: Remote Live View using BlackVue Cloud is not affected by the image quality and framerate settings.
LTE Connectivity Module (Optional)
Unlock BlackVue Cloud access. Share Wi-Fi in your car.
The CM100LTE provides easy 4G LTE connectivity to enable BlackVue Cloud features. All you need is a valid Nano SIM card. Your 3CH BlackVue includes a USB Hub accessory so you can connect both the CM100LTE and the driver-facing camera.
When connected to the CM100LTE, your BlackVue can serve as a mobile hotspot providing wireless Internet access to up to five devices (smartphone, tablet, etc.).
Note: when purchasing, make sure the CM100LTE you choose is compatible with your mobile carrier’s network.
Tamper-Proof Case (Optional)
The BTC-1C is a special-purpose mount designed to prevent tampering.
It replaces your dashcam’s original mount. The side cover, fastened by two hex screws, blocks the access to the microSD card and the cable connectors.
- Locks the dashcam’s angle via an hex screw to prevent rotation.
- Blocks the access to the microSD card slot.
- Protects against the unplugging of the power, video and USB cables.
Improved Sony STARVIS Sensor
The Sony STARVIS™ image sensor that equips the DR750X Plus Series front and rear cameras delivers outstanding low-light performance.
The back-illuminated sensor is capable of capturing an unprecedented amount of detail in both shadows and highlights.
Check below for a side-by-side comparison between the DR750X Plus and its predecessor the DR750X.
DR750X Plus (Day)
DR750X Plus (Night)
Parking Mode Kits
Parking Mode Batteries
BlackVue automatically switches to Parking Mode to monitor your parked vehicle.
Thanks to video buffer, the few seconds leading to triggering events are also recorded.
DR750X Plus Series supports two Parking Mode options:
Motion + Impacts
Motion & Impact Detection Parking Mode detects both:
- Motions recorded by the image sensor (marked “P” in the file list).
- Impacts detected by the accelerometer/G-sensor (marked “E” in the file list).
Choose detection regions to reduce the risk of triggering unwanted motion recordings due to trees swaying in the wind, far-away moving objects, etc.
Time Lapse + Impacts
Continuously records at 1FPS (one frame per second). Videos are played back at 30FPS.
1-minute Time lapse Parking Mode video = 30 minutes real time coverage.
Cover a period of more than 50 hours on a 32GB microSD card front and rear (the DMC100 camera does not record in Parking Mode) at the highest (Extreme) quality setting.
When an impact is detected, the dashcam creates a buffered Event video.
Parking Mode Event Voice Notifications:
Upon exiting Parking Mode, your BlackVue tells you if Events were recorded when you were away from your car, so you can check right away the Event videos on the BlackVue App.
Schedule a daily automatic reboot (optional—at night by default) to minimize potential errors. Reboots happen only if the dashcam is in Parking Mode and not writing data to the microSD card.
Completely turn off all LED indicators in Parking Mode. Only the recording LED indicator facing the interior of the vehicle will blink when motion or impact is detected.
|Dimensions||21 × 15 × 14 cm|
|MEMORY CAPACITY||32GB, 64GB, 128GB, 256GB|
- Front Camera
- Rear Camera
- DMS Camera

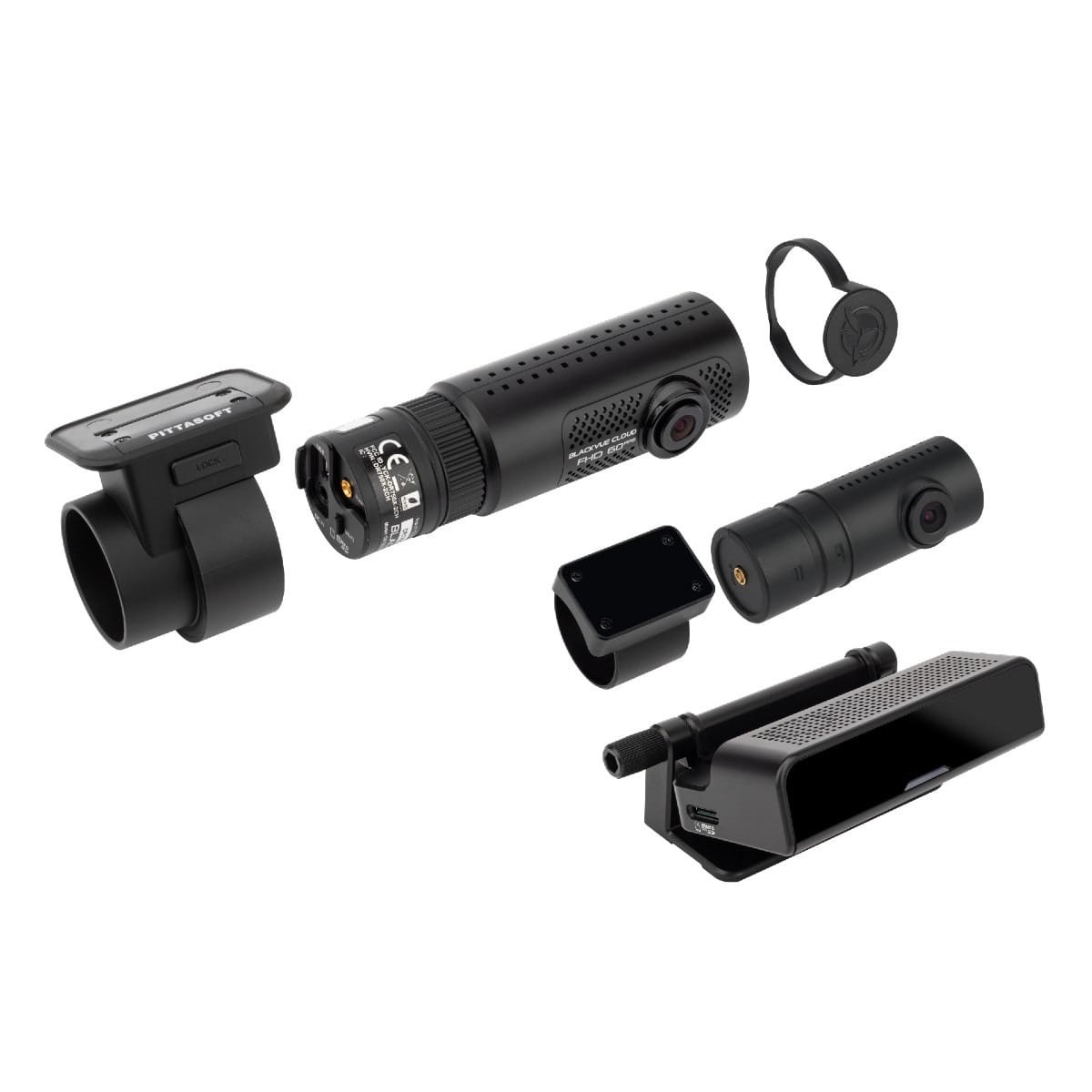

- Quick start guide
- User guide
- Pry tool
- Cable clips (12EA)
- Allen wrench
- microSD card (2EA)
- microSD card reader
- Spare mount sticky pads
- Hardwiring power cable
- Cigarette lighter power adapter
- Rear camera connection cable (6m / 19.68ft)
- USB Hub
- DMS camera connection cable (USB, 3m / 9.84ft)
- DMS camera hardwiring power cable (2p)
|Model Name||DR750X-3CH DMS Plus|
Full HD + Full HD + HD (Front + Rear + Interior), Cloud, Wi-Fi, GPS, Dual Sony Sensors, External LTE Module
Front: Black / W 118.5 mm (4.67″) x H 36 mm (1.42″) / 105 g (3.70 oz)
Rear: Black / W 67.4 mm x H 25 mm / 25 g (0.88 oz)
DMS : Black / L: 113.5mm x W 66.4 mm x H 38.4mm / 139 g (4.90 oz)
|Rear Camera Connection|
microSD card up to 256GB
YES (with 3-wire hardwiring cable – included)
|Parking Mode Event Voice Notifications|
Front: Sony STARVIS™ CMOS Sensor (Approx. 2.1 M Pixel)
Rear: Sony STARVIS™ CMOS Sensor (Approx. 2.1 M Pixel)
DMS: CMOS Sensor (Approx. 1M Pixel)
Front : Diagonal 139°, Horizontal 116°, Vertical 61°
Rear : Diagonal 139°, Horizontal 116°, Vertical 61°
DMS : Diagonal 54°, Horizontal 43°, Vertical 32°
|Resolution Frame Rate|
Front / Rear / DMS
Full HD (1920×1080) @ 60 fps – Full HD @ 30 fps (1920×1080) – HD (1280×720) @ 10 fps
*Frame rate may vary during Wi-Fi streaming.
|Image Quality and Bitrate Front/Rear|
Front / Rear / Interior
Highest (Extreme): 16 + 10 + 8 Mbps
Highest: 12 + 10 + 8 Mbps
High: 10 + 8 + 6 Mbps
Normal: 8 + 6 + 4 Mbps
|Event File Overwrite Protection|
YES (up to 51)
|SD Card Failure Alert|
|Video File Extension|
Built-in (802.11 b.g.n)
Built-in (Dual Band : GPS, GLONASS)
3-Axis Acceleration Sensor
Front: Recording LED, GPS LED, B/W/L LED, Front LED, Proximity Sensing LED
Rear: Rear Security LED
DMS: Status LED
|Rear Camera IR Illumination|
DMS: 940 nm (4 Infrared (IR) LEDs)
Button: Wi-Fi ON/OFF (Press)
-20 °C − 70 °C (-4 °F − 158 °F)
-20 °C − 85 °C (-4 °F − 185 °F )
|High Temp Cut Off|
Approx. 75 °C (167 °F )
DC 12V-24V (DC Plug (Ø3.5 x Ø1.1)) to Wires (Black: GND / Yellow: B+ / Red: ACC)
|Power Consumption Hour|
Normal Mode (WiFi On / GPS On / 3CH): Avg. 670mA / 12V
Normal Mode (WiFi Off / GPS On / 3CH): Avg. 630mA / 12V
Parking Mode (WiFi On / GPS Off / 3CH): Avg. 370mA / 12V
Parking Mode (WiFi Off / GPS Off / 3CH): Avg. 320 mA / 12V
* Actual power consumption may vary depending on use conditions and environment.
* Approximately, 60mA may increase in electric current when IR LED is turned ON.
Front: FCC, ISED, CE, UKCA, RoHS, Telec, WEEE
Rear: FCC, ISED, CE, UKCA, RoHS, WEEE
DMS: FCC, CE, UKCA, RoHS, WEEE
BlackVue Application (Android 5.0 or higher, iOS 11.0 or higher)
Adaptive Format-Free File Management System
|Model||Memory Capacity||Image Quality||Resolution|
|DR750X-3CH DMS Plus/|
DR750X-3CH DMS TRUCK Plus
|Front: Full HD @60fps | Rear: Full HD @30fps | Interior: HD @10fps|
|32GB||Extreme||1 HR 45 MIN|
|Highest||2 HR 16 MIN|
|High||2 HR 36 MIN|
|Normal||3 HR 05 MIN|
|64GB||Extreme||3 HR 09 MIN|
|Highest||4 HR 31 MIN|
|High||5 HR 13 MIN|
|Normal||6 HR 10 MIN|
|128GB||Extreme||6 HR 18 MIN|
|Highest||9 HR 02 MIN|
|High||10 HR 26 MIN|
|Normal||12 HR 19 MIN|
|256GB||Extreme||12 HR 37 MIN|
|Highest||18 HR 05 MIN|
|High||20 HR 51 MIN|
|Normal||24 HR 38 MIN|
|Bitrate (Mbps) |
Front + Rear + Interior
|Extreme||16 + 10 + 6|
|Highest||12 + 10 + 6|
|High||10 + 8 + 6|
|Normal||8 + 6 + 6|
