Front and Interior Full HD Protection

The DR590-2CH IR records Full HD 1080p videos of the front and interior of your car at 30 frames per second, in a 139-degree wide view angle (interior 140 degrees).
With the front camera’s Sony STARVIS™ imaging sensor, you get awesome image clarity day and night.
The interior infrared camera records clear videos even in complete darkness thanks to its discreet infrared illumination LEDs.

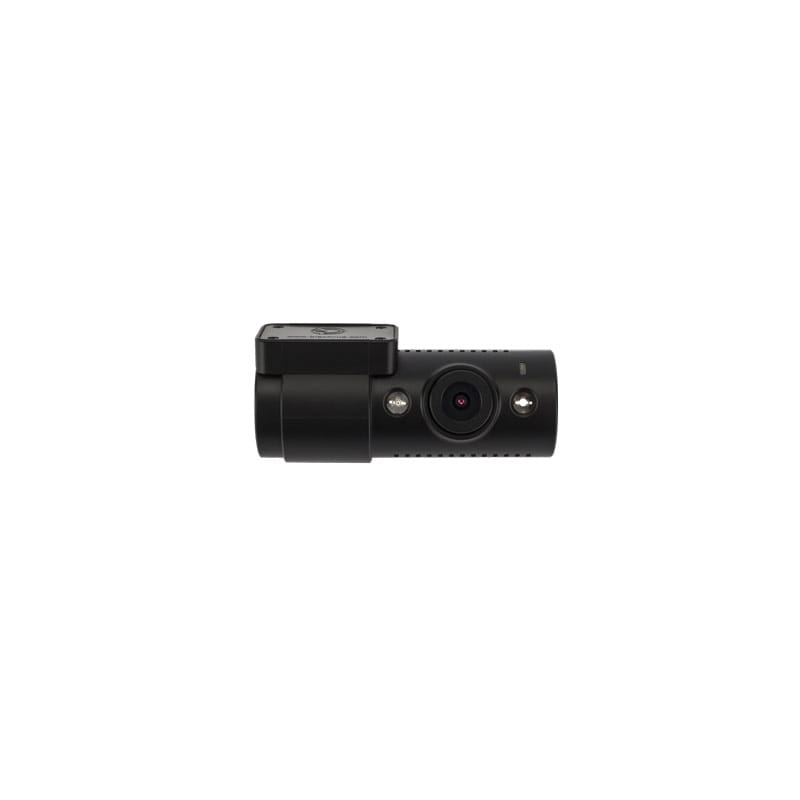

Interior Infrared Camera

The Interior IR Full HD camera is equipped with an illumination sensor and infrared LED which light is barely visible to the eye.
These allow the capture of clear images in pitch black lighting conditions.

Set up (easily) and forget

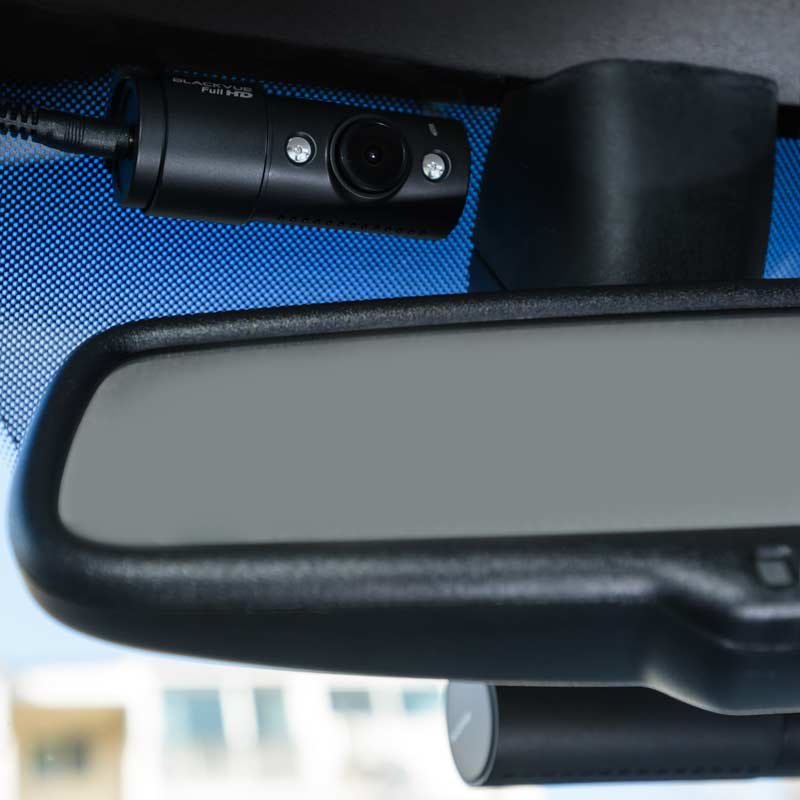

BlackVue dash​cams are very easy to install. Attach the front unit to the windshield behind the rear view mirror with the provided double-sided tape. This way, the dash​cam is invisible to the driver’s eye. The interior camera faces the driver, ideally above the rear view mirror and connects to the front unit with the included video cable.
Simply plug the power cords into the cigarette lighter / accessory power socket of your vehicle and it will automatically start recording as you turn ignition on.
Once set, you can forget about it, knowing it will reliably record your drive.

Parking Mode Support

The DR590W-2CH IR is compatible with Parking Mode. In Parking Mode, your dash​cam monitors your parked vehicle, recording videos when it detects movement or impact. It also includes the few seconds before the triggering event, thanks to buffered recording. You will need a Power Magic Pro or Power Magic Battery Pack to enable this feature. Find more info about Parking Mode here (link opens in new tab).

Secure Memory Management

Loop Recording: your dash​cam records over the oldest video files first when the microSD card is full, in a seamless loop.

Adaptive Format-Free Technology: your BlackVue saves and organizes files on the microSD card in a highly efficient way.
It reduces the need for formatting the card and prevents file corruption even after multiple write cycles.

Manage Videos Easily with the Free BlackVue Viewer

The BlackVue Viewer(WINDOWS/MAC) is free to download and use.
It lets you easily change your BlackVue configuration settings and review recorded videos.
It displays videos chronologically and by type (Normal/Event/Parking) to let you quickly identify and archive important footage.
You can also export video segments, remove audio or export screen captures.

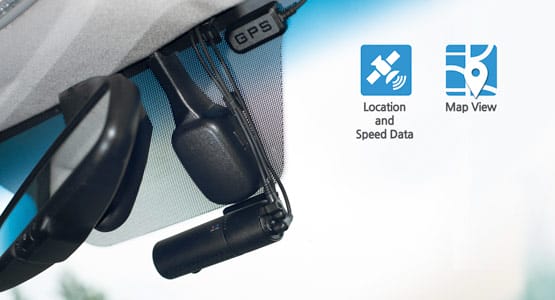

External GPS Receiver (Optional)

The External GPS Receiver (G-1E) adds speed and location data to your videos.
Speed:
 speed data–in Km/h or Mph–will be overlaid in the video (can be turned off in the settings).
Location: you can visualize the location of your vehicle in the BlackVue Viewer’s Map during video playback.

Weight1 kg
Dimensions21 × 15 × 14 cm
MEMORY CAPACITY32GB, 64GB, 128GB, 256GB
GPS RECEIVERExternal GPS included, External GPS not included

What's Included

  • Front Camera
  • Interior IR Camera
  • Interior camera connection cable (1.5m)
  • microSD Card
  • Power cord
  • External GPS (Optional)
  • microSD Card adapter
  • Quick start guide
  • Cable clips (5EA)
Specifications
Model NameDR590-2CH IR
Channel

2CH

Highlights

Full HD (Front + Interior IR Cam), External GPS, Sony Sensor

Product Dimensions

Front: W 111.8 mm (4.40″) x H 34 mm (1.34″) / 63 g (2.22 oz)
Rear:  W 67.4 mm (2.55″) x H 25 mm (0.98″) / 21 g (0.74 oz)

Rear Camera Connection

Analog cable

Memory Support

microSD card up to 256GB

Recording Modes

– Normal,
– Event (Impact Detection / Speed Limit),
– Parking Mode (Motion+Impact Detection)

Parking Mode

YES (with accessory)

Parking Mode Event Voice Notifications

YES

Imaging Sensor

Front: Sony STARVIS™ CMOS Sensor (Approx. 2.1MP)
Rear: CMOS Sensor (Approx. 2MP)

Viewing Angle

Front: Diagonal 139°, Horizontal 116°, Vertical 61°
Rear: Diagonal 140°, Horizontal 115°, Vertical 60°

Resolution Frame Rate

Front / Rear
-Full HD (1920×1080) @30fps / Full HD (1920×1080) @30fps
-Full HD (1920×1080) @30fps / HD (1280×720) @30fps
-HD (1280×720) @30fps / HD (1280×720) @30fps

Video Codec

H.264 (AVC)

Image Quality and Bitrate Front/Rear

Highest: 12+10 Mbps
High: 10+8 Mbps
Normal: 8+6 Mbps

Format Free

YES (Adaptive)

Scheduled Reboot

YES

Video File Extension

MP4

Cloud Compatible

NO

GPS

External (optional)

Microphone

Built-in

Speaker

Built-in

Impact Sensor

3-Axis Acceleration Sensor

LED Indicators

Front: Recording LED, GPS LED, Front Security LED
Rear: Rear Security LED

Rear Camera IR Illumination

940 nm, 2 Infrared (IR) Lights

Button

Button: Mic ON/OFF / Format microSD

Operation Temperature

-20℃ – 70℃ (-4°F – 158°F)

Storage Temperature

-20℃ – 80℃ (-4°F – 176°F)

High Temp Cut Off

Approx. 80℃ (176°F)

Backup Battery

Built-in supercapacitor

Input Power

DC 12V – 24V (DC Plug: (-)—C—(+) (Ø3.5 x Ø1.35), MAX 1A/12V)

Power Consumption Hour

Avg. 290mA (3.48W at 12V, when there is no external GPS receiver)
Avg. 310mA (3.72W at 12V, when an external GPS receiver is connected)
Approx. 60mA increase in current when IR LEDs are ON.

Certifications

Front: FCC, CE, RoHS
Rear: FCC, CE, RoHS

software

BlackVue Viewer
* Windows XP or higher and Mac Yosemite OS X (10.10) or higher

Others

Adaptive Format-Free File Management System

Recording time

ModelMemory
Capacity
Image QualityResolution
DR590-2CH/ DR590W-2CH/
DR590-2CH IR/ DR590W-2CH IR
Full HD @30fps
+ Full HD @30fps
Full HD @30fps
+ HD @30fps
HD @30fps
+ HD @30fps
16GBHighest1 HR 25 MIN 1 HR 35 MIN 2 HR
High1 HR 50 MIN 2 HR 2 HR 40 MIN
Normal2 HR 20 MIN 2 HR 40 MIN 4 HR
32GBHighest2 HR 50 MIN 3 HR 10 MIN 4 HR
High3 HR 40 MIN 4 HR 5 HR 20 MIN
Normal4 HR 40 MIN 5 HR 20 MIN 8 HR
64GBHighest5 HR 40 MIN 6 HR 20 MIN 8 HR
High7 HR 20 MIN 8 HR 10 HR 40 MIN
Normal9 HR 20 MIN 10 HR 40 MIN 16 HR
128GBHighest11 HR 20 MIN 12 HR 40 MIN 16 HR
High 14 HR 40 MIN 16 HR 21 HR 20 MIN
Normal18 HR 40 MIN 21 HR 20 MIN 32 HR
Bitrate (Mbps) Front + RearHighest12 + 10 12 + 8 8 + 8
High10 + 8 10 + 6 6 + 6
Normal8 + 68 + 4 4 + 4
